SMT Breakout PCB for 32-QFN or 32-TQFP - 3 Pack

από Adafruit
This breakout PCB set will make your life much much easier and get you prototyping faster than ever.
09-00001163
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: Adafruit
Part Number: ADA1163
Χώρα Προέλευσης: ΗΠΑ
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
7.30
Χωρίς ΦΠΑ 5.89
+

ΠΕΡΙΓΡΑΦΗ

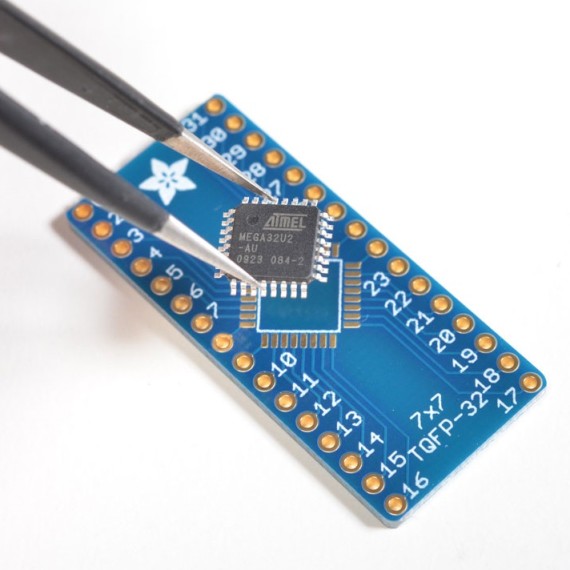

Beguiled by a fancy new chip that is only available in a QFP or QFN pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 32-QFP pin out with traces going to two rows of 0.1" spaced holes, the other has 32-QFN. Solder your chip to either side and you're ready to rock on any solderless breadboard.
Each item comes with three PCBs, each PCB is identical and can support either a 7mm square QFP or 5mm square QFN chip. Standard thickness PCBs, with 0.6" spacing between the two rows.
The first run of these has a typo on the top right of the QFP where the pin # are off by one, we'll fix this in the next run of boards.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Αριθμός Pins:
32 Pin
Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
Adafruit
Part Number:
ADA1163
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
ΗΠΑ

ΑΡΧΕΙΑ
