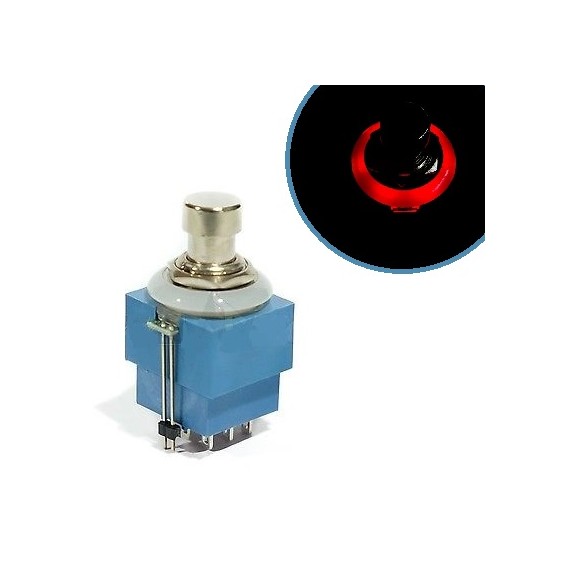

Stomp Switch 3PDT Latching - with Solder Lugs (LED Red)

by OEM
If you want to upgrade you footswitch on your guitar pedal to True Bypass this is the switch for you. They are great for dark stages, bars and clubs so you...
29-00024303
Gross Weight: 0kg
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Low stock in store
4.90
Without VAT 3.95
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 3.92 3.43 2.94
WISHLIST COMPARE

RELATED PRODUCTS

DESCRIPTION

If you want to upgrade you footswitch on your guitar pedal to True Bypass this is the switch for you. They are great for dark stages, bars and clubs so you you see where you footswitch is by the Red light and the look super cool as well.

NOTES

  • For a 9V power supply, a 470ohm or greater resistor should be used or the LEDs could be damaged.

SPECIFICATIONS

Contacts configuration :
  • 3PDT
Switching method :
ON-ON
DC or AC Rating:
3A / 250VAC
Leads for:
Soldering

SPECIFICATIONS

  • Protection Level: IP67
  • Max. Current: 3A
  • Max. Voltage: 250VAC
  • Standard: IEC standard
  • Panel size: 12mm
  • Voltage: 250VAC
  • Switch type: Foot pedal switch
  • LED:
    • Color: Red
    • Operating voltage: 1.6...2.4V
    • Operating current: 5mA
  • Product name: 3pdt push button pedal LED illuminated foot switch
  • Function: Momentary / Latching foot switch
  • Material: Bakelite/Brass Ni plated
