Stomp Switch 3PDT Latching - with Solder Lugs

by OEM

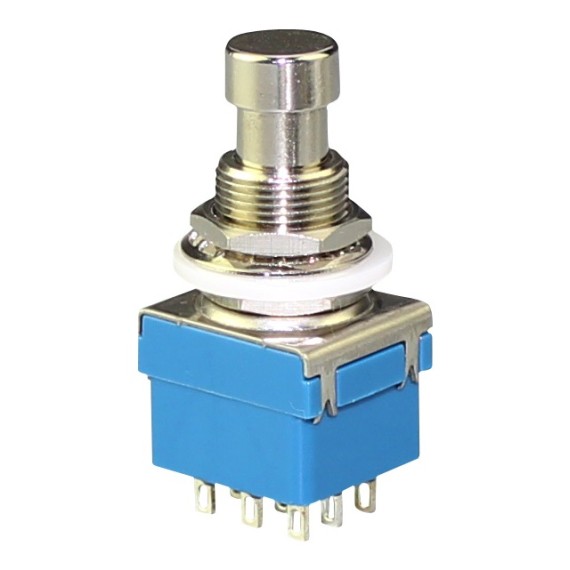

These are the sturdy little stomp switches that you find on guitar effects pedals. They're 3PDT on/on type switches which mount into a 1/2" diameter hole.
29-00024302
Gross Weight: 0.02kg
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
3.60
Without VAT 2.90
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 2.88 2.52 2.16
WISHLIST COMPARE

RELATED PRODUCTS

DESCRIPTION

These are the sturdy little stomp switches that you find on guitar effects pedals. They're 3PDT on/on type switches which mount into a 1/2" diameter hole.

SPECIFICATIONS

Breadboard Friendly :
Not reccomented
Contacts configuration :
  • 3PDT
Switching method :
ON-ON
DC or AC Rating:
2A / 250VAC
Leads for:
Soldering

SPECIFICATIONS

  • Switch type push-button
  • Stable positions number: 2-position / latching
  • AC contacts rating (at resistance load): 2 A / 250 VAC
  • Actuator colour: Grey
  • Leads for soldering, solder lugs
  • Terminals: Gold Plated 9pins
  • Switching method: ON-ON
  • Body colour: Blue
  • Max. contact resistance: 20mΩ
