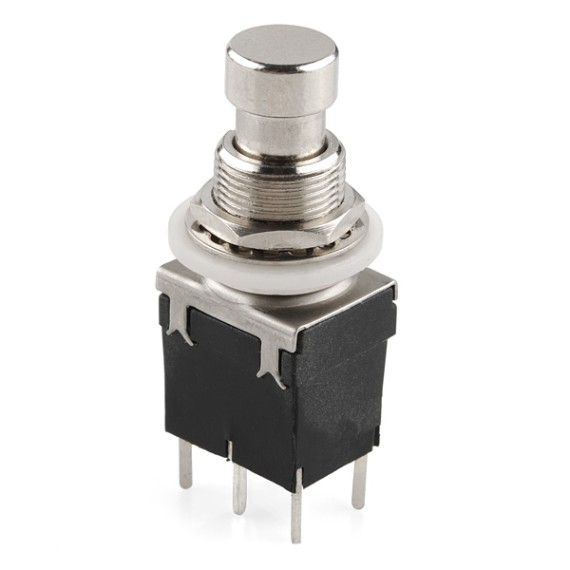

Stomp Switch DPDT Momentary with PCB Lugs

05-00018757
PS24212P
CompanyNinigi Part NumberPS24212P
Upon Order
Available in 1-3 days
This product will be back in stock on Friday, 13 December 2024
240
Our quantity discounts:
Quantity
10+
100+
Price
1.92
1.68
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

These are the sturdy little stomp switches that you find on guitar effects pedals. They're DPDT on-(on) type switches which mount into a 1/2" diameter hole. You'll need at least 7/8" of depth beneath your mounting surface to accommodate the switch body. Use these as replacements in some types of effects pedals or, better yet, build your own!

  • Switch type push-button
  • Stable positions number: 1-position
  • AC contacts rating (at resistance load): 1 A / 250 VAC
  • Actuator colour: Grey
  • Leads for PCB
  • Switching method: ON-(ON)
  • Body colour: Black
  • Max. contact resistance: 20mΩ
Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Ninigi
G. Weight
0.001kg
Contacts configuration
  • DPDT
Switching method
ON-(ON)
DC or AC Rating
1A / 250VAC
Leads for
PCB
