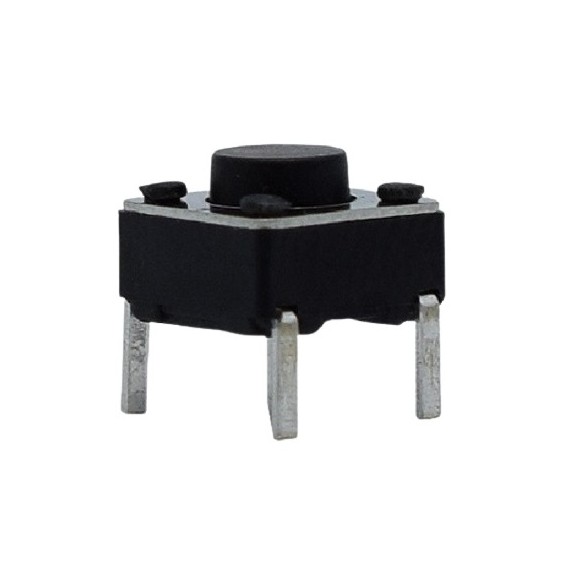

BTT-A06T-H is 4 Pin Tactile Switch.
These switches is 50mA 12VDC offering a variety of dimension and button height.
Besides, it uses PCB terminals for quick and easy installation.
- Rating: 50mA 12VDC
- Button Height: 5mm
- Button Color: Black
- Operating Force: 250±50gf
- Operating Temperature: -30 - 70℃
- Installation Mode: PCB
- Dimension: 6x6mm
- Electrical Life: 50.000 Cycles
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Strength: 250VACmin
