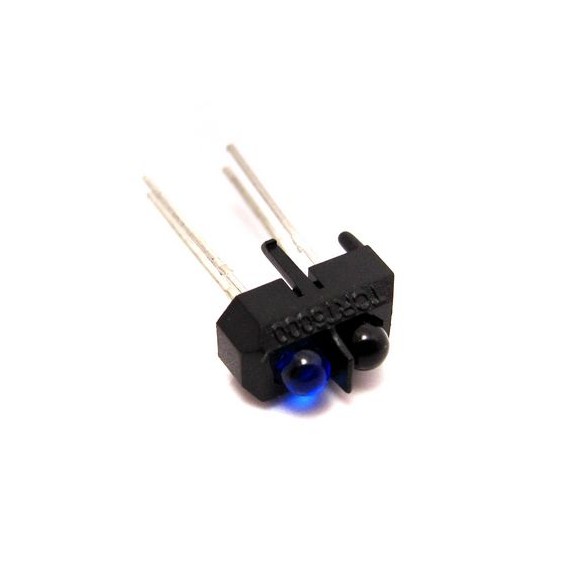

Infrared Sensor TCRT5000 950nm

by Vishay

The LED emits invisible Infrared Light. The Phototransistor detects the reflected light from some external object.

05-00025099
Company: Vishay
Made in: China
Out of Stock
Product out of stock
Available in store
1.30
Without VAT 1.05

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

The LED emits invisible Infrared Light. The Phototransistor detects the reflected light from some external object..  Often used as a close-in Robot object sensor / line follower, paper or position sensor etc.

SPECIFICATIONS

Sensor Type:
  • Infrared
Typical Input Voltage:
  • 5VDC
Oparating Current:
1mA
Interface:
  • Analog
Communication Protocol:
  • Without

EXTRA SPECIFICATIONS

  • Type of semiconductor component optocoupler
  • Kind of optocoupler reflective
  • Output type transistor
  • Current transfer ratio at forward current 3.5%@10mA
  • Collector-emitter voltage 32V

FEATURES

  • Position sensor for shaft encoder
  • Detection of reflective material such as paper, IBM cards, magnetic tapes
  • Limit Switch for machanical motions in VCR
  • General purpose

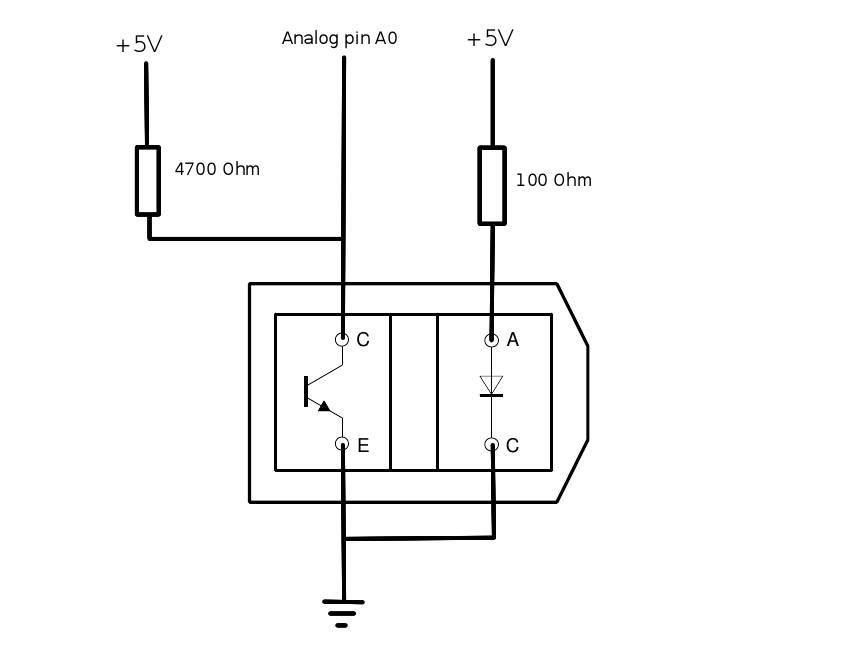

Connection
