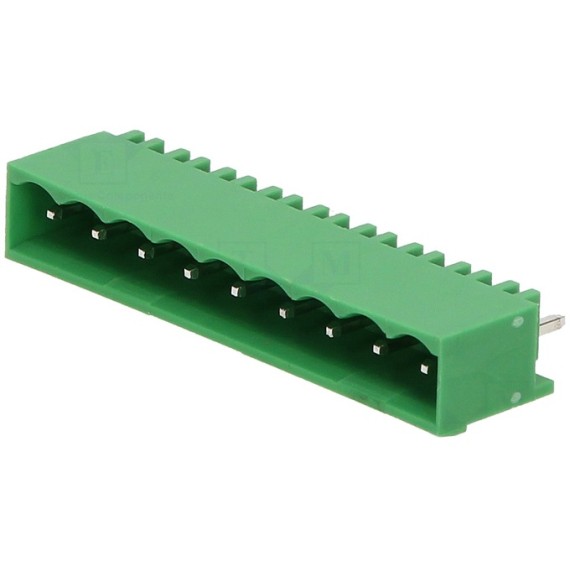

Terminal Block Pluggable 9 Pins Male (P5.08)

by Ninigi
05-00150825
Company: Ninigi
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
0.70
Without VAT 0.56
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 0.56 0.4900 0.4200
WISHLIST COMPARE

SPECIFICATIONS

Connector Type:
  • Male
Contacts Pitch:
  • 5.08mm
Number of Pins:
9 Pin

EXTRA SPECIFICATIONS

  • Type of connector: Pluggable terminal block
  • Contacts pitch: 5.08mm
  • Number of ways: 9
  • Spatial orientation: Straight
  • Connector: Socket
  • Kind of connector: Male
  • Mechanical mounting: on PCBs
  • Electrical mounting: THT
  • Colour: Green
  • Type of pin configuration: 1x9
  • Locking system: for latch
  • Rated voltage: 300V
  • Current rating: 15A
  • Body material: Polyamide
  • Flammability rating: UL94V-0
  • Contact plating: Tinned
  • Operating temperature: -40...105°C
  • Contact material: Brass
  • Number of pins: 9
  • Height: 11.9mm
  • Depth: 8mm
  • Soldering temperature: 250°C/5s

Dimensions
