TF-Luna Micro Single-point LiDAR Module

by DFROBOT
TF-Luna is a single-point ranging Lidar, based on ToF principle. With unique optical and electrical design, it can achieve stable, accurate and highly...
25-00016126
Company: DFROBOT
Part Number: SEN0340
Made in: China
Out of Stock
Product out of stock
Low stock in store
26.80
Without VAT 21.61

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

TF-Luna is a single-point ranging Lidar, based on ToF principle. With unique optical and electrical design, it can achieve stable, accurate and highly sensitive range measurement.

Small Size Design

Small TF-Luna, weight as light as <5g.

High Performance

High stability and high sensitivity.
TF-Luna Detection distance is up to 8m, the blind zone is 0.2m, and distance resolution is 1cm.
The standard deviation of TF-Luna at 90% reflectivity

High precision

TF-Luna can detect objects with a minimum edge length of 3.5 cm within a detection distance of 1m
TF-Luna can detect objects with a minimum edge length of 28 cm within a detection distance of 8m

The relationship between the detect distance and effective length of objects.

Easy to get start, high level of generality

The power supply voltage of TF-Luna is 5V, equipped with UART communication interface, the communication level is 3.3V. TF-Luna is compatible with Arduino, Raspberry Pi and other platforms.

Application Scenarios

  • Robot: Robot obstacle avoidance, Robot anti-drop protection
  • UAV: UAV obstacle avoidance, UAV altitude setting
  • Smart City: Smart toilets, Smart trash bins
  • Smart Retail: Smart ad trigger, Smart mirror trigger

Economical

It can be widely applied to many development scenarios

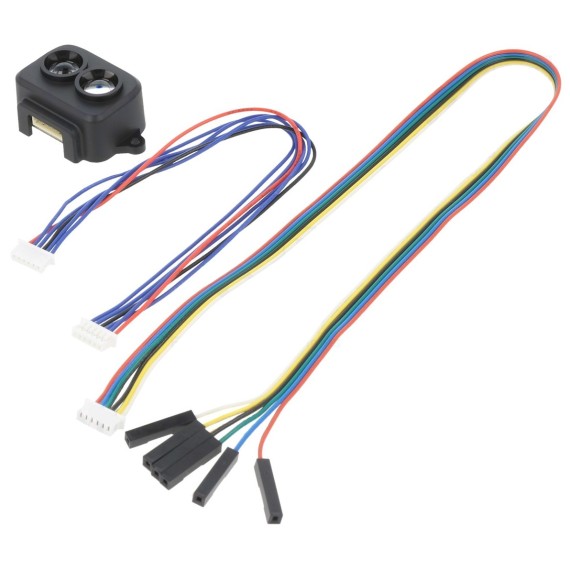

THE PACKAGE INCLUDES

  • 1x TF-Luna LiDAR (8m)
  • 1x Wiring

SPECIFICATIONS

Sensor Type:
  • Infrared
  • Proximity
Typical Input Voltage:
  • 5VDC
Interface:
  • Digital
Communication Protocol:
  • I2C
  • UART

SPECIFICATIONS

  • Distance Resolution: 1cm
  • Frequency: 100Hz
  • Ambient Light Resistance: 70klux
  • Detecting Range: 0.2~8m
  • Weight: <5g
  • FoV: 2°
  • Supply Voltage: 5V±0.1V
  • Data Interface: UART/ I²C
  • Accuracy: ±6cm@(0.2m-3m)
