Trimmer 6mm Single Turn - 20Kohm (Horizontal)

05-00061202
Company: SR PASSIVES
Made in: China
In Stock
Ships in 24 Hours
Available in store
0.1500
Without VAT 0.12
+
WISHLIST COMPARE

SPECIFICATIONS

Kind of potentiometer:
Single turn
Mounting:
THT
Resistance :
  • 20KΩ
Power:
0.100W
Tolerance:
±30%
Max. Operating Voltage:
50Volt

EXTRA SPECIFICATIONS

  • Type of potentiometer: Mounting
  • Kind of potentiometer: Single turn, horizontal
  • Resistance: 20kΩ
  • Power: 100mW
  • Tolerance: ±30%
  • Characteristics: Linear
  • Potentiometer standard: 6mm
  • Mechanical rotation angle: 200°
  • Torque: 0,4...3,5Ncm
  • Max. operating voltage: 50V
  • Operating temperature: -25...40°C
  • Mounting: THT

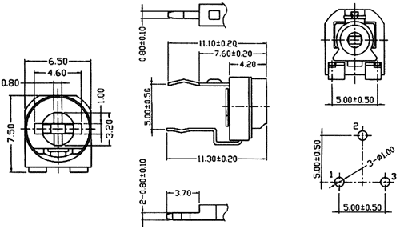

Dimensions

  • Body: 6.5x7x4.2mm
  • Terminal pitch: 5x5mm

DOCUMENTS
