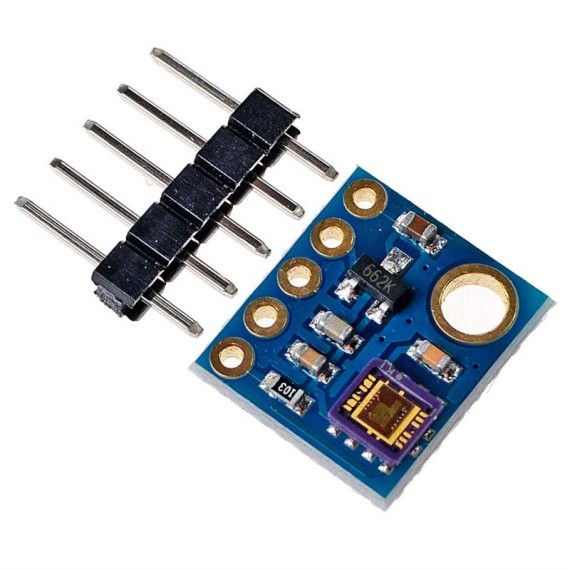

Αισθητήρας Υπεριώδους Ακτινοβολίας - ML8511

από OEM

Ο αισθητήρας ML8511 είναι ένας εύκολος στη χρήση αισθητήρας υπεριώδους ακτινοβολίας. Ο ανιχνευτής υπεριωδών ακτίνων MP8511 λειτουργεί με την έξοδο ενός αναλογικού σήματος σε σχέση με την ποσότητα του υπεριώδους φωτός που ανιχνεύεται. Αυτό το breakout board μπορεί να είναι πολύ βολικό στη δημιουργία συσκευών που προειδοποιούν τον χρήστη για ηλιακά εγκαύματα ή ανιχνεύουν τον δείκτη UV σε σχέση με τις καιρικές συνθήκες.

19-00011019
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Part Number: GY-ML8511
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
19.90
Χωρίς ΦΠΑ 16.05
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 15.92

ΠΕΡΙΓΡΑΦΗ

The ML8511 breakout is an easy to use ultraviolet light sensor. The MP8511 UV (ultraviolet) Sensor works by outputing an analog signal in relation to the amount of UV light that's detected. This breakout can be very handy in creating devices that warn the user of sunburn or detect the UV index as it relates to weather conditions.

This sensor detects 280-390nm light most effectively. This is categorized as part of the UVB (burning rays) spectrum and most of the UVA (tanning rays) spectrum. It outputs a analog voltage that is linearly related to the measured UV intensity (mW/cm2). If your microcontroller can do an analog to digital signal conversion then you can detect the level of UV!

ML8511 UV light can be used with an analog voltage output proportional to the amount. Since the output voltage can therefore be directly connected to the MCU built A / D digital / analog converter, no photoelectric converting circuit. And the use of small, low-profile surface-mount package, suitable for use in portable devices.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Είδος Περιφερειακού:
  • Αισθητήρες
Κατασκευαστής
:
OEM
Part Number:
GY-ML8511
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Υπεριώδης Ακτινοβολίας (UV)
Τυπική Τάση Εισόδου:
  • 3.3VDC
Διασύνδεση:
  • Αναλογική
Πρωτόκολλο Eπικοινωνίας:
  • Χωρίς

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating voltage: 2.7 to 3.6V DC
  • Operating temperature: -20 to +70°C
  • Maximum-sensitivity wave length: 365nm
  • Sensitivity region: UV-A and UV-B
  • Output type: Analog
  • Current:
    • Operating mode: 300µA
    • Standby mode: 0.1µA
  • Dimensions: 13x11x2mm

ΔΥΝΑΤΟΤΗΤΕΣ

  • Optical sensor to UV-A and UV-B
  • Realize equalization of an output voltage by trimming
  • The analog voltage output proportional to UV light intensity
  • Low current operation ( 300µA Typ.)  and low standby current ( 0.1µA Typ.)
