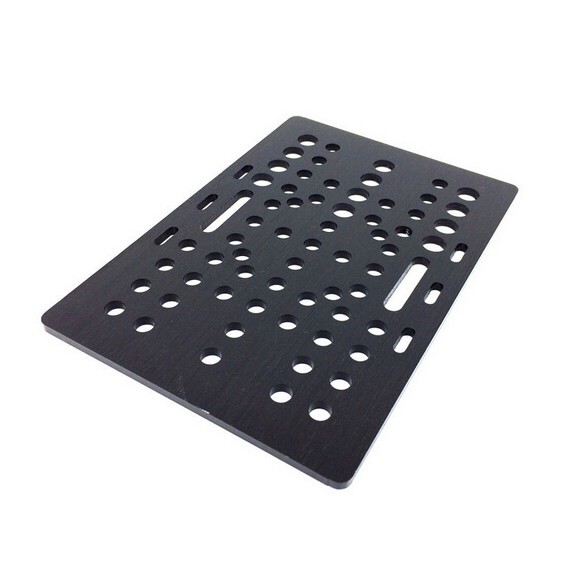

V-Slot Gantry Plate 20mm-80mm

Universal (20mm - 80mm) - This plate is designed to fit on all standard V-Slot sizes. It's a great plate to have and use on your builds! We want to ensure...
27-99920801
Volumetric weight: 0.08kgs
Company: OpenBuilds
Made in: USA
In Stock
Ships in 24 Hours
Low stock in store
12.99
Without VAT 10.48
+
WISHLIST COMPARE

DESCRIPTION

Universal (20mm - 80mm) - This plate is designed to fit on all standard V-Slot sizes. It's a great plate to have and use on your builds!
We want to ensure that we simplify belt clamping so we have incorprated 'Fold-Through' Slots to allow you to easily fold the timing belt teeth back onto themselves and zip tie or clamp them in place.
We have also added two 5mm slots that allow you to attach spacers for 90 degree belt mounts under or on top of the plate as well.
This simplifies the overall building process and allows for quick assembly times of motion systems.

SPECIFICATIONS

Series:
  • V-Slot
Material:
Aluminium

Notes

  • There are a lot of possible mounting configurations for these plates so please be sure to look at all the example model builds.
  • If you want V-Slot Gantry Set 2020x2080 Xtreme buy it from HERE!

EXTRA SPECIFICATIONS

  • 6063-T6 Aluminum
  • Black Anodized Finish
  • 3mm~ (1/8") Thick
