Home/Robotics/Sensors/Proximity/Waterproof Ultrasonic Sensor A02YYUW

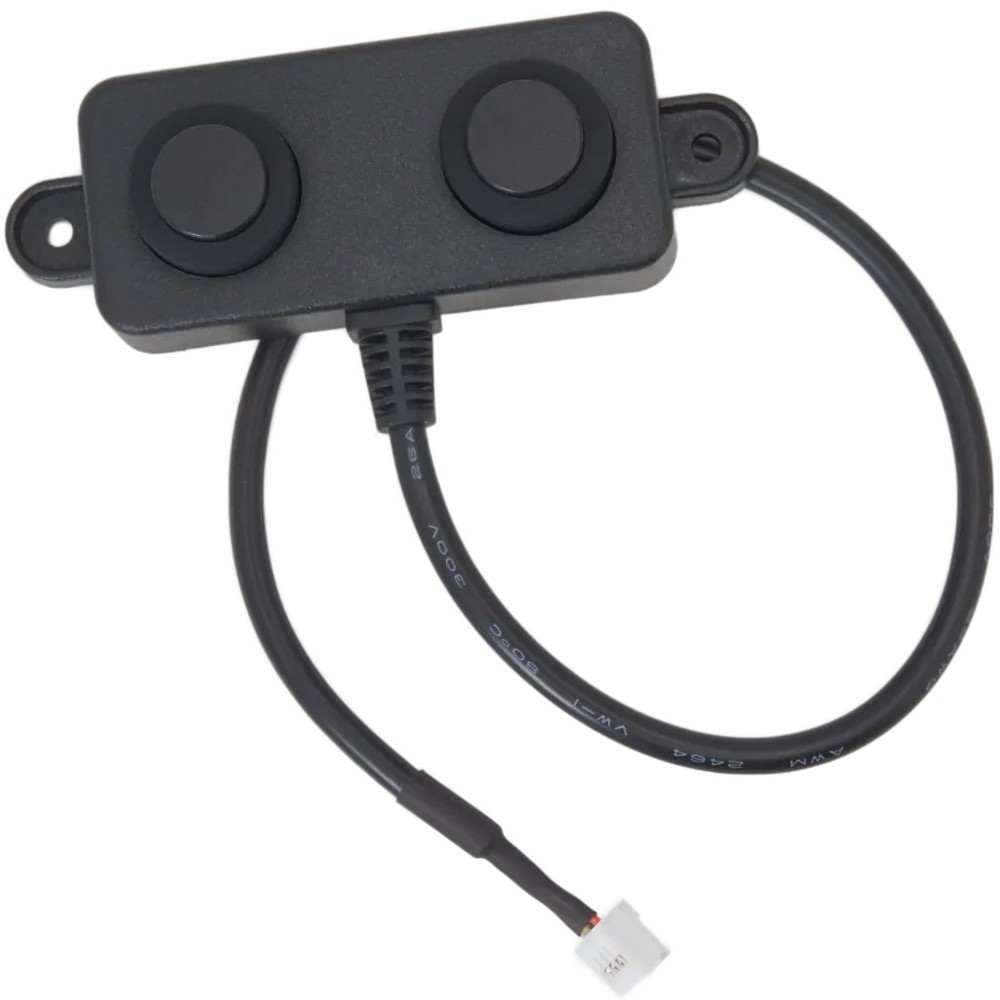

Waterproof Ultrasonic Sensor A02YYUW

SKU:

39-00032901

CompanyOEM

Out of Stock

€24⁸⁰

Ask a question

Availability in Retail Store

Payments & Shipping

Description
Specifications

The A02 series sensor module is designed with a closed, waterproof bistatic probe. It offers a certain level of dust and water resistance, making it suitable for wet and harsh measurement environments. Its small 3 cm blind zone allows for versatility in various detection conditions. This commercial-grade functional module is simple to operate and delivers high performance and reliability.

Features

3cm small blind zone
3.3V–5V power input
Closed waterproof bistatic probe
Operating temperature from -15°C to +60°C
Storage temperature from -25°C to +80°C
Low power consumption design Anti-static electricity design in accordance with IEC61000-4-2 standard

Advantages

Small blind zone
Strong anti-interference ability
Stable and reliable distance value data output
Low power consumption
Fast response time
Strong anti-static electricity ability
Wide range operating temperature
High measurement accuracy

Application examples

Horizontal distance sensing Car Parking system
Robot avoidance and automatic control
Object proximity and presence awareness

Technical data

Output interface	UART Auto
Operating voltage	3.3V–5.0V
Working current	≤8mA
Peak current	≤40mA
Measuring range	3–450cm
Working cycle	100ms
Measurement accuracy	±(1+S·0.3%)cm
Temperature compensation	Supports
