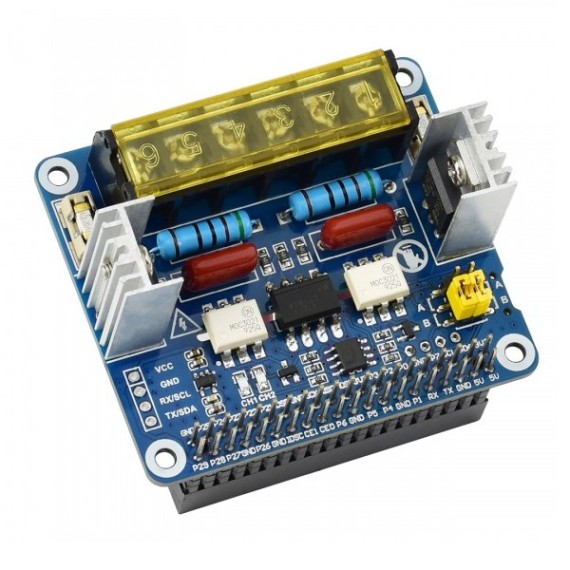

Waveshare 2-CH Bidirectional Triac HAT

από WAVESHARE
Αμφίδρομο Triac HAT για Raspberry Pi Dual Channel, με ενσωματωμένο MCU, υποστηρίζει άμεσο έλεγχο εντολών, εύκολο στην ανάπτυξη με γρήγορη απόκριση, υποστηρίζει επικοινωνία μέσο UART / I2C.
31-00017852
Ογκομετρικό βάρος: 0.09kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: 2-CH TRIAC HAT
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
32.00
Χωρίς ΦΠΑ 25.81
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 28.80

ΠΕΡΙΓΡΑΦΗ

Dual Channels Triac HAT

Bidirectional SCR Isolated HAT, Dual Channels Triac Output Control

Advantages Over Relay
High Efficiency, No Mechanical Noise Or Wear, Quick Response, Adjustable Output

Designed For Raspberry Pi Series
Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards

STM32F0 MCU Onboard
Integrates STM32F030 MCU, Supports Directly Command Control, Easy For Developping
Quicker Response, Requires Minimal Resource From The Raspberry Pi

High Data Rate, Always One Step Ahead
Up To 921.6kbps For UART,Up To 1024kbps For I2C

Powerful Output Power
Up To 4400W Output Power, Under Ideal Heat Dissipation Condition



ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. 2-CH TRIAC HAT x1
  2. Screws x1
12
Optocoupler Isolation
Optoisolated Solution, Preventing Interference From The High Voltage Circuit

Home Appliance Support
In The Example Of Controlling 220VAC Home Appliances

What's On Board

  1. BTA24-600 high power bidirectional triac
  2. MOC3021S photocoupler, the triac driver
  3. LTV-824S AC photocoupler
  4. RC snubber circuit
  5. LM358DR OP amplifier
  6. STM32F030F4P6 main controller
  7. RT9193-33PB power chip
  8. Output indicator
  9. 20A blow fuse
  1. Standard Raspberry Pi 40PIN GPIO header
  2. MCU control interface, for use with other host control boards like Arduino
  3. AC input
  4. AC output
  5. Data bus selection
    A: use Raspberry Pi I2C bus
    B: use Raspberry Pi UART bus
  6. Mode selection
    A: I2C mode
    B: UART mode

Pinout Definition









ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τύπος HAT:
  • Automation
Κατασκευαστής
:
WAVESHARE
Part Number:
2-CH TRIAC HAT
Μικτό Βάρος:
0.089kg
Χώρα Προέλευσης:
Κίνα
Συμβατό Raspberry:
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Model 2 B
  • Zero
  • Zero W

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • AC Voltage: 100 ~ 600V
  • AC Current: 0~20A
  • Controller: STM32F030
  • Communication Bus: I2C/UART
  • UART Data Rate: 1.2 ~ 921.6 kbps
  • I2C Data Rate: 1024 kbps
  • Logic Level Voltage: 3.3V/5V
  • Dimensions: 65x56.5mm

ΔΥΝΑΤΟΤΗΤΕΣ

  • STM32F0 MCU controller, requires minimal Raspberry Pi resource, UART / I2C communication
  • RC snubber circuit, protect the triac from power fluctuation
  • Up to 4400W output power, under ideal heat dissipation condition
  • Optocoupler isolation, preventing interference from the high voltage circuit
  • Indicator for easy checking the status of triac
  • Reserved UART and I2C interface, for working with other host control boards
  • Data rate: up to 921.6kbps for UART,up to 1024kbps for I2C
  • Comes with development resources and manual (examples in C and Python)
