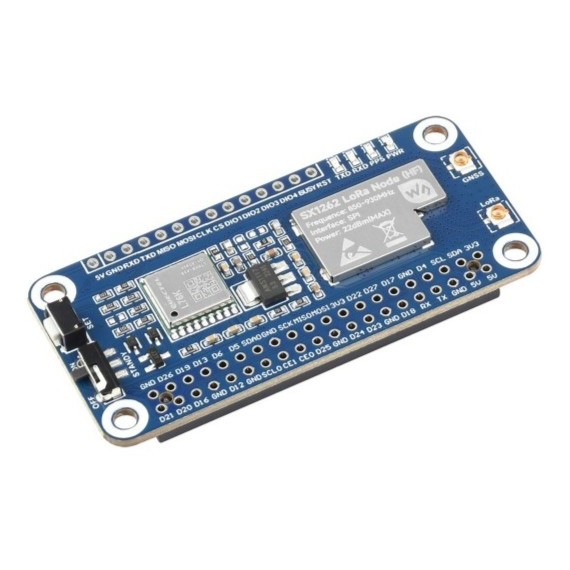

Waveshare LoRaWAN & GNSS HAT – SX1262, Συχνότητα: 850–930

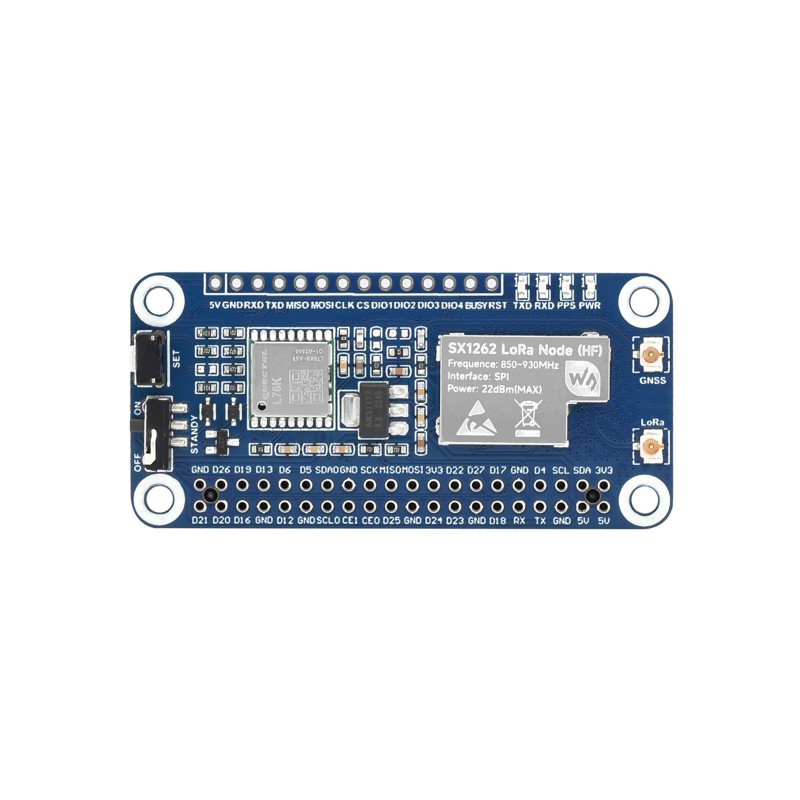

Waveshare LoRaWAN & GNSS HAT – SX1262, Συχνότητα: 850–930, 2 image

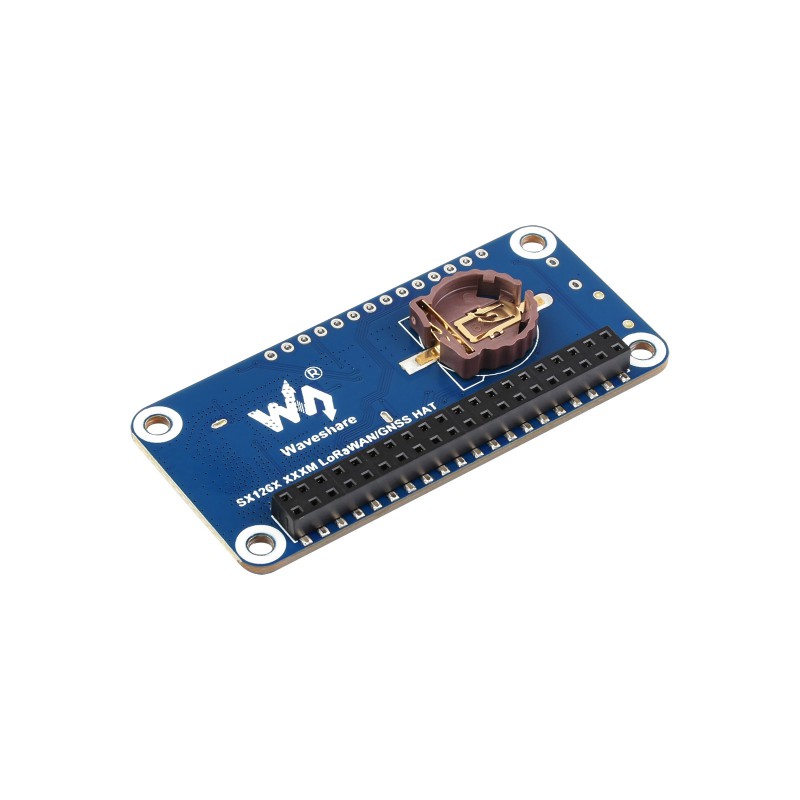

Waveshare LoRaWAN & GNSS HAT – SX1262, Συχνότητα: 850–930, 3 image

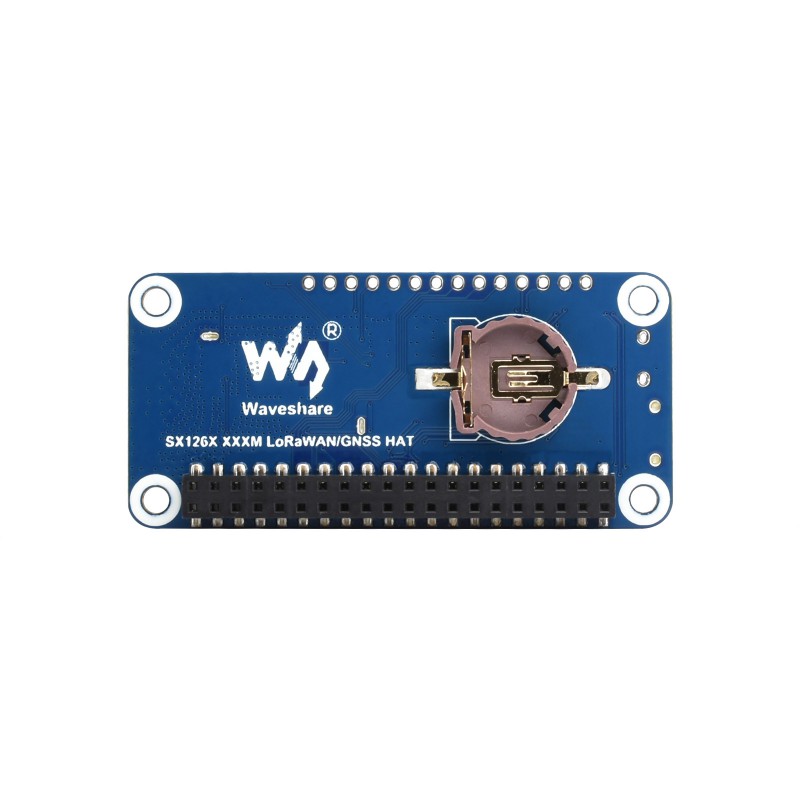

Waveshare LoRaWAN & GNSS HAT – SX1262

Κωδικός:

31-00024654

Part Number: SX1262 868 LoRaWAN/GNSS HAT

Συχνότητα:

410 – 510 MHz 850–930 MHz

ΚατασκευαστήςWaveshare Part NumberSX1262 868 LoRaWAN/GNSS HAT ΣυμβατότηταRaspberry Pi 4, Raspberry Pi 5, Raspberry Pi Zero Τύπος HATWireless Communication

Διαθέσιμο

Αποστολή σε 24 ώρες

€29⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€26.91

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Προβολη ολων των παραλλαγών ως λίστα

Column filling

Ταξινόμηση Τιμή	Ταξινόμηση Διαθεσιμότητα	Ταξινόμηση Κωδικός	Ταξινόμηση Συχνότητα
€29⁹⁰	Διαθέσιμο + − ΑΓΟΡΑ	31-00024656	Συχνότητα: 410 – 510
€29⁹⁰	Διαθέσιμο + − ΑΓΟΡΑ	31-00024654	Συχνότητα: 850–930

Περιγραφή
Χαρακτηριστικά

This series of LoRa modules is based on the next-generation SX1262 RF chip, offering long-range communication and strong anti-interference capabilities. Designed for use in the Sub-GHz frequency band, the modules are available in two versions: LF (410–510 MHz) and HF (850–930 MHz). When used with a LoRa gateway, these modules can connect to servers such as TTN to form a LoRaWAN network. These versions also offer GNSS positioning with GPS/BeiDou (BD) support.

Key features

Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi series boards
The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278

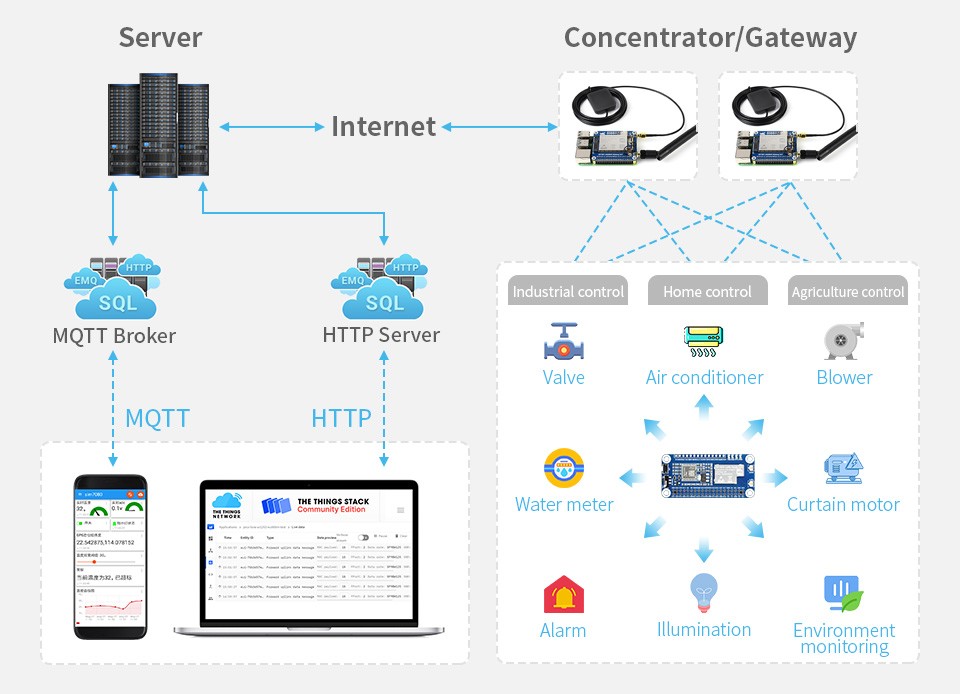

Suitable for Sub-GHz band, combined with the gateway, can be quickly connected to a cloud server such as TTN to build a LoRaWAN network
Onboard L76K module with GPS/BD support, provides accurate clock and location info for node module
Onboard button cell holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
Onboard 4 LED indicators for module operating status
Comes with online development resources and manual (example in C)

Available options

LoRa parameters
RF chip	SX1262
Frequency band	LF: 410–510 MHz, HF: 850–930 MHz
Modulation	LoRa/(G)FSK
Data rate	LoRa: 0.018–62.5 Kbps, (G)FSK: 0.6–300 Kbps
Emit power	[email protected]
Spreading factor	SF7–SF12
Operating voltage	3.3V
Module current consumption	Emitting current: 107mA@22dBm Receiving current: 5.3mA@125KHz
Communication bus	SPI
Operating temperature	0–50 ℃
Interface	40PIN GPIO header

GNSS parameters
GNSS module	L76K
GNSS type	GPS/GLONASS/BDS/QZSS
L1 Band receiver (channels)	32 Tracking ch / 72 Acquisition ch
A-GNSS	Support
Receiving sensitivity (Acquisition, re-acquisition, tracking)	-148dBm, -160dBm, -162dBm
TTFF (Time To First Fix) Cold starts	30s, Autonomous 5.5s, With AGNSS
Position accuracy	2.0m CEP
Speed accuracy	0.1m/s
Acceleration accuracy (Max)	0.1m/s²
UART rate	Range: 4800–115200bps, Default: 9600bps
GNSS data update rate	Max: 5Hz, Default: 1Hz

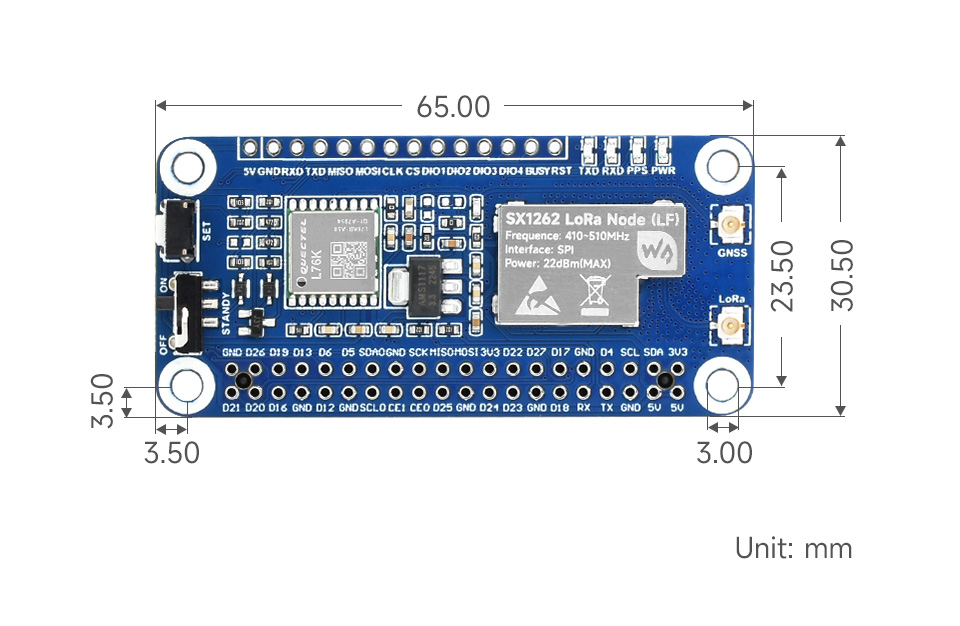

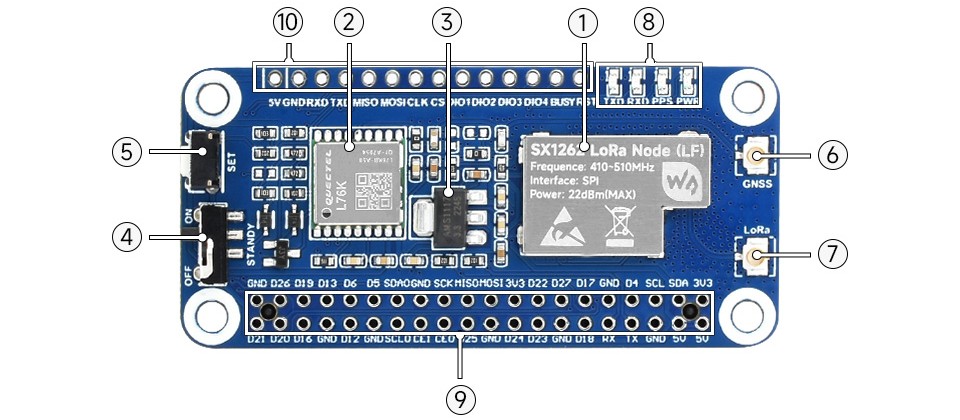

Hardware layout

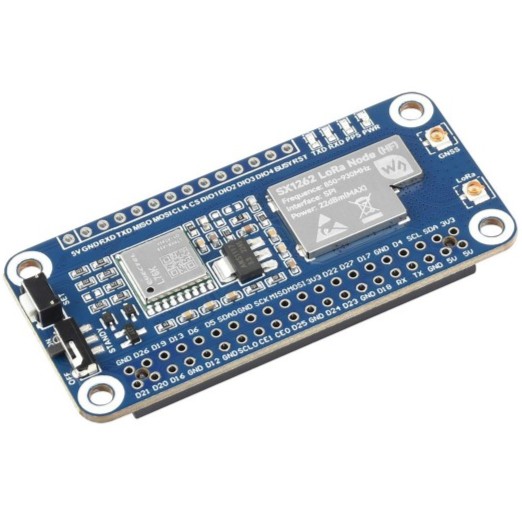

SX1262 LoRa module
L76K GNSS module
Power chip 5V to 3.3V LDO
GPS STANDY mode ON/OFF
OFF: turn off STANDY and GPS works normally
ON: turn on STANDY, GPS stops outputting NMEA
SET button, press to wake up the GNSS module in sleep mode
GNSS module IPEX 1 connector L76K antenna connector
LoRa module IPEX 1 connector LoRa antenna connector
Status Indicator
PWR: power indicator
RXD/TXD: UART RX/TX indicator
PPS: GPS status indicator

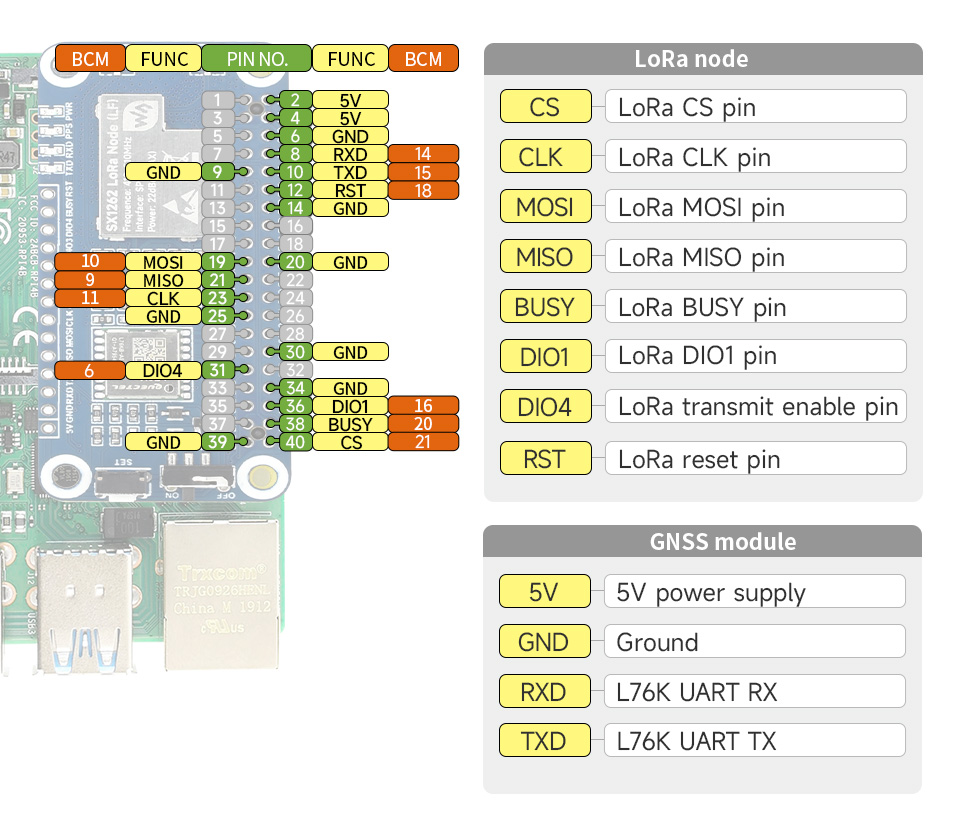

Raspberry Pi 40PIN GPIO header for connecting with Raspberry Pi series boards
LoRa module and GNSS module pin header

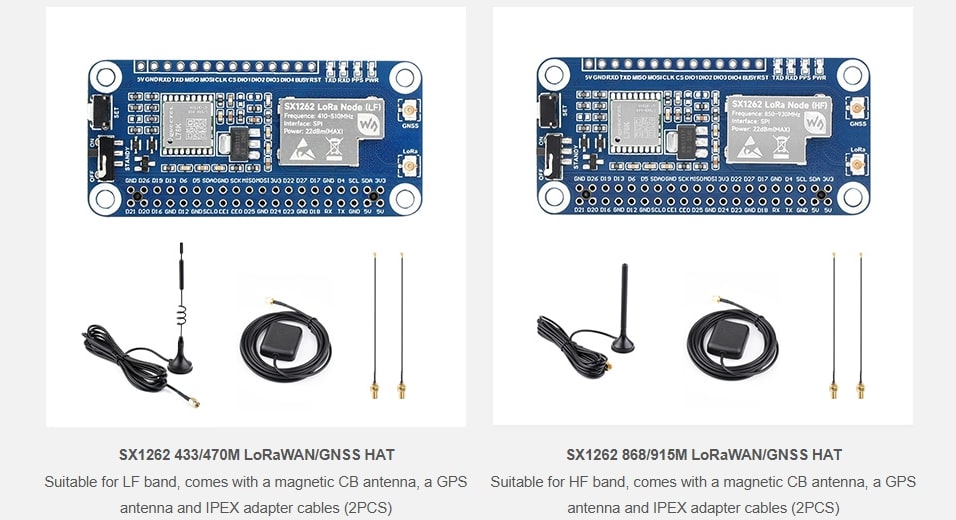

Package contents

GRobotronics SKU: 31-00024656

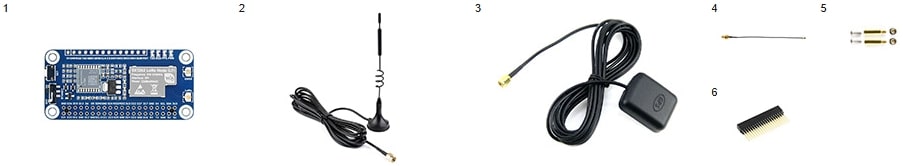

- 1. SX1262 433/470M LoRaWAN/GNSS HAT ×1
- 2. 433/470M Magnetic CB antenna ×1
- 3. GPS antenna ×1
- 4. IPEX to SMA adapter cable ~17cm ×2
- 5. Screws pack ×1
- 6. 2×20PIN female pinheader ×1

GRobotronics SKU: 31-00024654

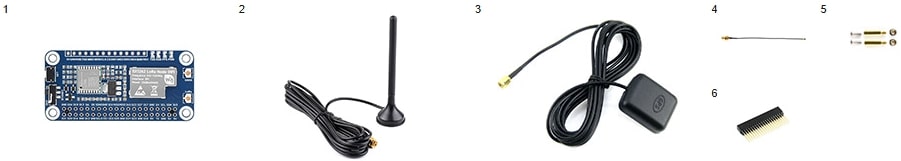

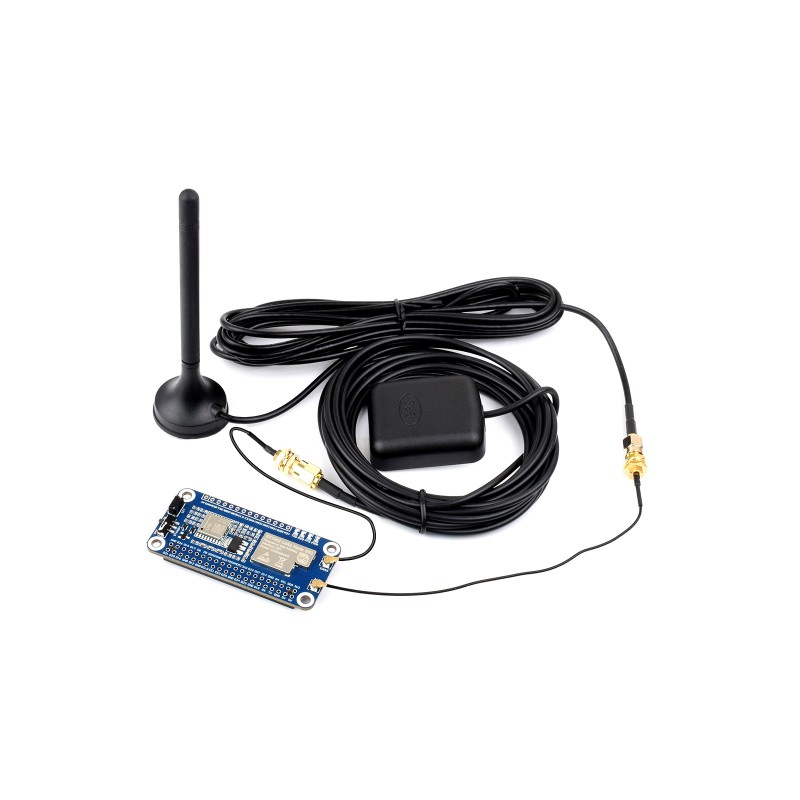

- 1. SX1262 868/915M LoRaWAN/GNSS HAT ×1
- 2. 868/915M Magnetic CB antenna ×1
- 3. GPS antenna ×1
- 4. IPEX to SMA adapter cable ~17cm ×2
- 5. Screws pack ×1
- 6. 2×20PIN female pinheader ×1
