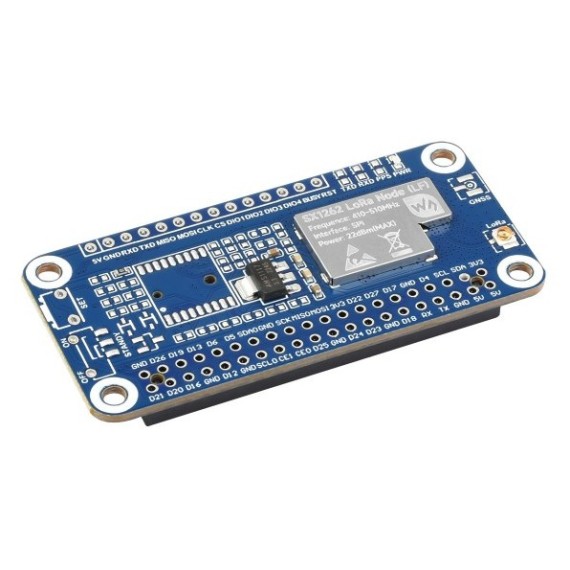

Waveshare LoRaWAN HAT for Raspberry Pi SX1262 - 868MHz

από WAVESHARE
SX1262 LoRaWAN/GNSS HAT SX1262 RF Chip LoRa Module, Suitable For Sub-GHz Band Network This series of products are LoRa modules using the new...
31-00022002
Ογκομετρικό βάρος: 0.09kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: SX1262 868 LoRaWAN HAT
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
19.90
Χωρίς ΦΠΑ 16.05
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 17.91

ΣΥΝΔΥΑΣΕ ΤΟ ΜΕ

ΠΕΡΙΓΡΑΦΗ

SX1262 LoRaWAN/GNSS HAT
SX1262 RF Chip LoRa Module, Suitable For Sub-GHz Band Network

This series of products are LoRa modules using the new generation of SX1262 RF chip, with the features of long communication distance and strong anti-interference ability. Suitable for Sub-GHz frequency band network, and is available in LF (410~510MHz) or HF (850~930MHz) frequency band versions. Combined with a LoRa gateway, it can be connected to servers such as TTN to build a LoRaWAN network. In addition to the basic LoRaWAN version, it also provides optional GNSS positioning function with GPS/BD support.

Common features:

  • Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi series boards
  • The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278
  • Suitable for Sub-GHz band, combined with the gateway, can be quickly connected to a cloud server such as TTN to build a LoRaWAN network

GNSS version features:

  • Onboard L76K module with GPS/BD support, provides accurate clock and location info for node module
  • Onboard button cell holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
  • Onboard 4 LED indicators for module operating status
  • Comes with online development resources and manual (example in C)

Version Options

LoRaWAN basic version

SX1262 433/470M LoRaWAN HAT
Suitable for LF band, comes with a magnetic CB antenna and an IPEX adapter cable
SX1262 868/915M LoRaWAN HAT
Suitable for HF band, comes with a magnetic CB antenna and an IPEX adapter cable

LoRaWAN/GNSS version

SX1262 433/470M LoRaWAN/GNSS HAT
Suitable for LF band, comes with a magnetic CB antenna, a GPS antenna and IPEX adapter cables (2PCS)
SX1262 868/915M LoRaWAN/GNSS HAT
Suitable for HF band, comes with a magnetic CB antenna, a GPS antenna and IPEX adapter cables (2PCS)



ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ


  1. SX1262 868/915M LoRaWAN HAT x1
  2. 868/915M Magnetic CB antenna x1
  3. IPEX to SMA adapter cable ~17cm x1
  4. Screws pack x1
  5. 2×20PIN female pinheader x1
12
345


Pinout Definition

What's On Board

  1. SX1262
    LoRa module
  2. L76K
    GNSS module
  3. Power chip
    5V to 3.3V LDO
  4. GPS STANDY mode ON/OFF
    OFF: turn off STANDY and GPS works normally
    ON: turn on STANDY, GPS stops outputting NMEA
  5. SET button
    Press to wake up the GNSS module in sleep mode
  1. GNSS module IPEX 1 connector
    L76K antenna connector
  2. LoRa module IPEX 1 connector
    LoRa antenna connector
  3. Status Indicator
    PWR: power indicator
    RXD/TXD: UART RX/TX indicator
    PPS: GPS status indicator
  4. Raspberry Pi 40PIN GPIO header
    for connecting with Raspberry Pi series boards
  5. LoRa module and GNSS module pin header

Application Examples
Industrial Control, Intelligent Home, And Data Acquisition...

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τύπος HAT:
  • Wireless Communication
Κατασκευαστής
:
WAVESHARE
Part Number:
SX1262 868 LoRaWAN HAT
Μικτό Βάρος:
0.091kg
Χώρα Προέλευσης:
Κίνα
Συμβατό Raspberry:
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Zero W
  • Zero 2 W

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • LORA Parameters
    • RF Chip: SX1262
    • Frequency Band
      • LF: 410 ~ 510MHz
      • HF: 850 ~ 930MHz
    • Modulation: LoRa / (G)FSK
    • Data Rate LoRa:
      • 0.018 ~ 62.5Kbps
      • (G)FSK: 0.6 ~ 300Kbps
    • Emit Power: [email protected]
    • Spreading Factor: SF7 ~ SF12
    • Operating Voltage: 3.3V
    • Module Current Consumption
      • emitting current: 107mA@22dBm
      • receiving current: 5.3mA@125KHz
    • Communication Bus: SPI
    • Operating Temperature: 0 ~ 50℃
    • Inteface: 40PIN GPIO header
  • GNSS Parameters
    • GNSS Module: L76K
    • GNSS Type: GPS/GLONASS/BDS/QZSS
    • L1 Band Receiver (Channels): 32 Tracking ch/72 Acquisition ch
    • A-GNSS: Support
    • Receiving Sensitivity
      (Acquisition, Re-Acquisition, Tracking):
      • -148dBm
      • -160dBm
      • -162dBm
    • TTFF (Time To First Fix) Cold Starts:
      • 30s, Autonomous
      • 5.5s, With AGNSS
    • Position Accuracy: 2.0m CEP
    • Speed Accuracy: 0.1m/s
    • Acceleration Accuracy (Max): 0.1m/s²
    • UART Rate
      • Range: 4800~115200bps
      • Default: 9600bps
    • GNSS Data Update Rate
      • Max: 5Hz
      • Default: 1Hz
