Waveshare Motor Driver HAT

Κωδικός:

31-00015364

Part Number: 15364

ΚατασκευαστήςWaveshare Part Number15364

Διαθέσιμο

Αποστολή σε 24 ώρες

€24⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€23.66

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

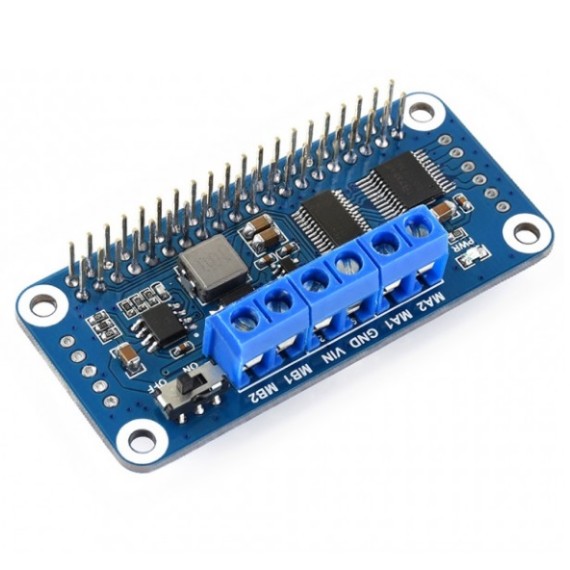

The Motor Driver HAT is designed for Raspberry Pi, controlled via I2C interface, will drive two DC motors at the same time. It's an ideal choice for you to DIY mobile robots.

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

Motor Driver HAT x1
RPi screws pack (2pcs) x1

ΣΗΜΕΙΩΣΕΙΣ

The Raspberry Pi in the photo is NOT included.

Power supply: 6V~12V (VIN terminal)
Logic voltage: 3.3V
PWM driver: PCA9685
Control interface: I2C

Motor driver: TB6612FNG
Dimension: 65x30mm
Mounting hole size: 3.0mm

Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
I2C controlled, by setting 5 address jumpers, it is stackable up to 32 this modules
Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed
Onboard TB6612FNG dual H-bridge motor driver, high efficiency, low heating

Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
Reserved I2C control pins, allows to work with other control boards
Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
