Waveshare Raspberry Pi Expansion Board - ARPI600

από WAVESHARE
Arduino is a massive ecosystem, if there's a way for the Raspberry Pi GPIO interface to adapt to Arduino pinouts, it is possible to use the Pi together...
31-00010042
Ογκομετρικό βάρος: 0.13kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: 10042
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
24.90
Χωρίς ΦΠΑ 20.08
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 22.41

ΠΕΡΙΓΡΑΦΗ

Arduino is a massive ecosystem, if there's a way for the Raspberry Pi GPIO interface to adapt to Arduino pinouts, it is possible to use the Pi together with vast Arduino shields and hardware/software resources. The ARPI600 is just intended for this.

What's more, the ARPI600 also support XBee modules, make it easy to add wireless feature to your great project.

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. ARPI600 x 1
  2. USB type A plug to mini-B plug cable x 1
  3. RPi screws pack (2pcs) x 1
123



ΣΗΜΕΙΩΣΕΙΣ

Supported Raspberry Pi:

  • Raspberry Pi 1 Model A+
  • Raspberry Pi 1 Model B+
  • Raspberry Pi 2 Model B
  • Raspberry Pi 3 Model B

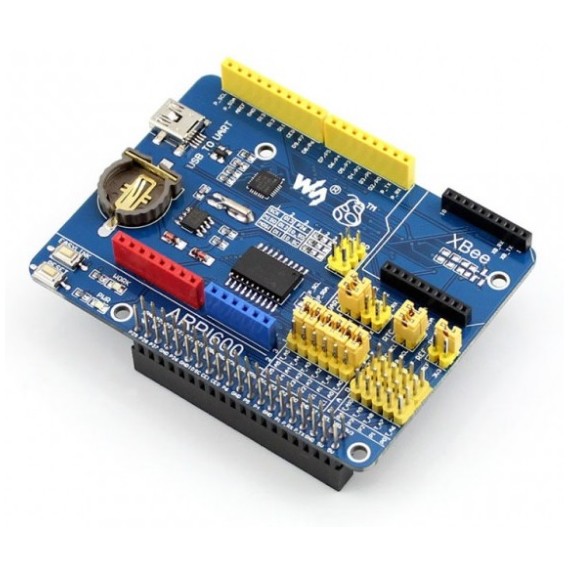

Raspberry Pi Expansion Board on board resource

  1. Arduino connector : for connecting Arduino shields
  2. ICSP interface : Arduino ICSP
  3. XBee connector : for connecting XBee communication modules
  4. Sensor interface : for connecting sensors
  5. Raspberry Pi connector : for connecting Raspberry Pi
  6. USB TO UART
  7. TLC1543 : AD converter
  8. PCF8563 : RTC
  9. CP2102
  10. 32.768KHz crystal : for RTC
  11. Power indicator
  12. XBee state LED
  13. XBee and Arduino interface RESET button
  14. XBee EASYLINK button
  15. RTC battery holder : for CR1220 button battery
  16. TLC1543 reference voltage configuration jumper
  17. RTC jumper
  18. UART jumper
    • when connecting P_RX and CP_TX, P_TX and CP_RX respectively, USB TO UART is connected to Raspberry Pi serial port
    • when connecting XB_RX and CP_TX, XB_TX and CP_RX respectively, USB TO UART is connected to XBee serial port
    • when connecting XB_RX and P_TX, XB_TX and P_RX respectively, Raspberry Pi serial port is connected to XBee serial port
  19. Arduino AD selection jumper
    • short 2 and 3 : Arduino A0-A5 as AD input
    • short 1 and 2 : Arduino A0-A5 as digital control
  20. Arduino I2C selection jumper
    • short the jumper : Arduino A4-A5 as I2C control (the A4-A5 of Arduino AD selection jumper should be opened)
  21. Arduino SPI selection jumper
    • short 1 and 2 : Arduino D11-D13 as SPI control (default)
    • short 2 and 3 : Arduino D11-D13 as digital control

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τύπος HAT:
  • Prototyping
Κατασκευαστής
:
WAVESHARE
Part Number:
10042
Μικτό Βάρος:
0.133kg
Χώρα Προέλευσης:
Κίνα
Συμβατό Raspberry:
  • Model 3 B
  • Model 2 B
  • Model B+

ΔΥΝΑΤΟΤΗΤΕΣ

  • Compatible with Arduino UNO, Leonardo, easy to connect with various Arduino shields
  • XBee connector for connecting various XBee modules
  • Sensor interface for connecting various sensors
  • Onboard USB TO UART for serial port debugging, also can be configured as XBee USB adapter
  • Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors)
  • Onboard RTC
