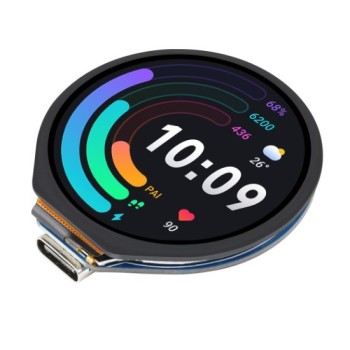

Waveshare RP2040 Board with 1.28" Round LCD & 6DοF Sensor

από WAVESHARE
RP2040 Microcontroller Development Board, With 1.28inch Round Touch LCD, Compact Size, Accelerometer And Gyroscope Sensor RP2040-Touch-LCD-1.28 Based...
31-00024580
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: RP2040-Touch-LCD-1.28
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
28.60
Χωρίς ΦΠΑ 23.06
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 25.74

ΠΕΡΙΓΡΑΦΗ

RP2040 Microcontroller Development Board, With 1.28inch Round Touch LCD, Compact Size, Accelerometer And Gyroscope Sensor

RP2040-Touch-LCD-1.28
Based on Raspberry Pi RP2040

RP2040-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Small Size, Touch More Possibilities
Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function



Support C/C++, MicroPython, Arduino
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Dual-Core Arm Processor
Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

What's On Board

  1. USB Type-C connector
    supports USB1.1 hosts and slave devices
  2. ETA6096
    high-efficiency Lithium battery recharge manager
  3. RT9013-33GB
    500mA low dropout, low noise, ultra-fast LDO
  4. W25Q128JVSIQ
    16MB NOR-Flash
  5. RP2040
    dual-core processor, up to 133MHz operating frequency
  1. QMI8658
    6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.
  2. BOOT button
    Press it when resetting to enter download mode
  3. RESET button
  4. MX1.25 battery header
    MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging

Pin Definition

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
WAVESHARE
Part Number:
RP2040-Touch-LCD-1.28
Μικτό Βάρος:
0.013kg
Χώρα Προέλευσης:
Κίνα
Συμβατό Raspberry:
  • Pico

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 4MB of on-board Flash memory
  • Type-C connector, keeps it up to date, easier to use
  • Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
  • Lithium battery recharge/discharge header, suitable for mobile devices
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • Accurate clock and timer on-chip
  • Temperature sensor
  • 6 × GPIO pin via SH1.0 connector
