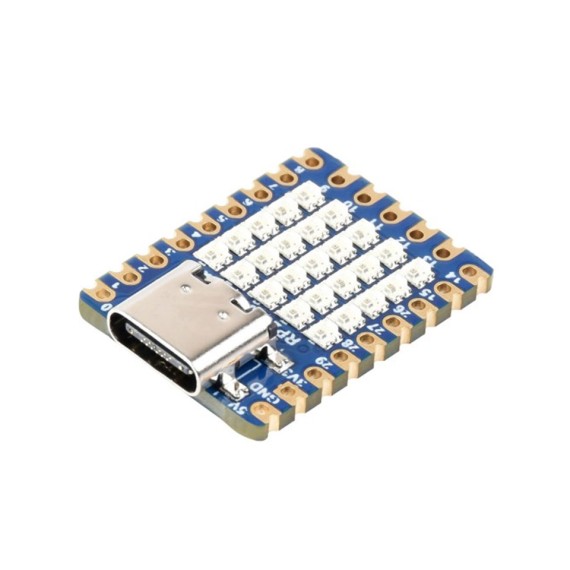

Waveshare RP2040 With RGB LED Maxtrix 5x5

από WAVESHARE
RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom Dual-core Arm Cortex M0+ processor, flexible clock running up to...
31-00024594
Ογκομετρικό βάρος: 0.02kg
Χρώμα: RGB
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: RP2040-Matrix
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
9.90
Χωρίς ΦΠΑ 7.98
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 8.91

ΠΕΡΙΓΡΑΦΗ

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of on-board Flash memory
  • Onboard 5 × 5 RGB LED matrix for colorful lighting display
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 20 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
WAVESHARE
Part Number:
RP2040-Matrix
Σύνδεση:
  • SPI / I2C / Serial
Μικτό Βάρος:
0.023kg
Χώρα Προέλευσης:
Κίνα
Τάση Λειτουργίας:
3 - 5VDC
Τάση Εισόδου:
3.3 or 5VDC
Χρώμα:
RGB
