Waveshare RPi Relay Board

Waveshare, 11638
31-00011638

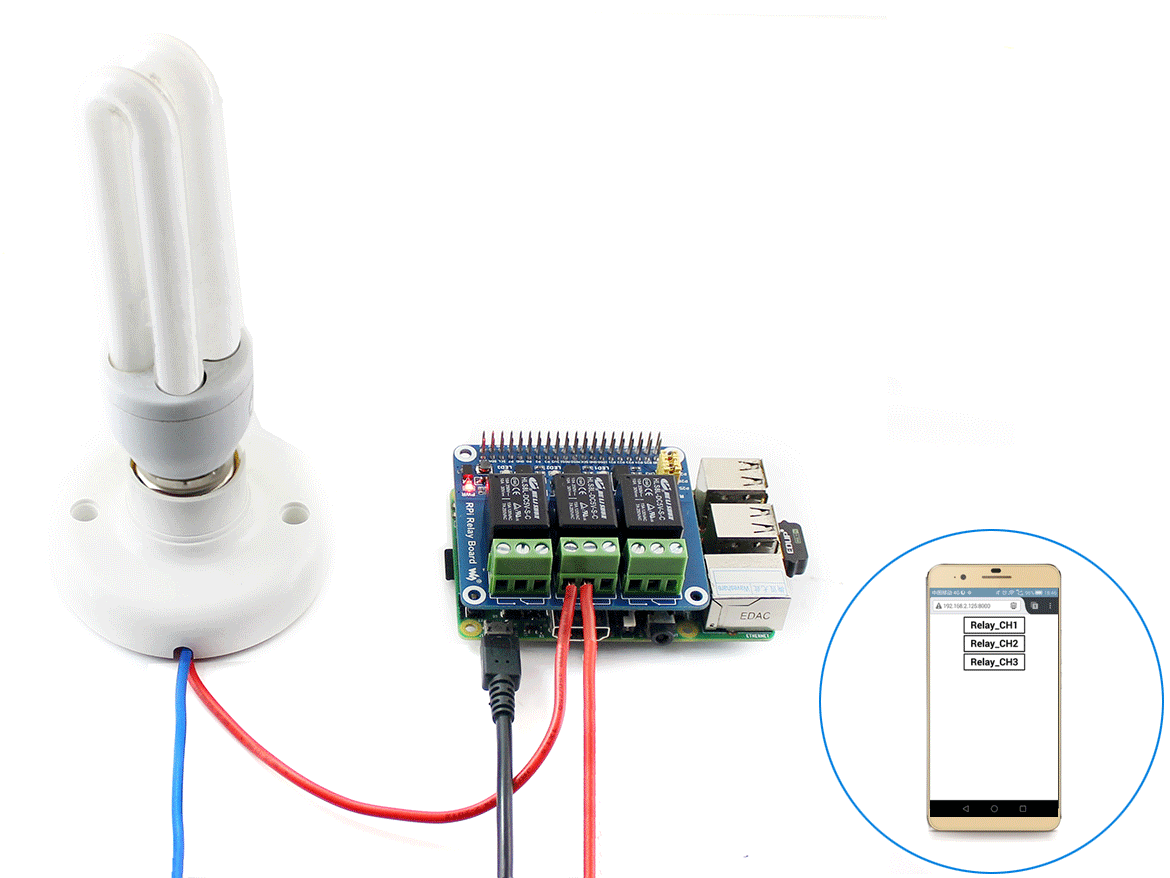

The RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.
19.90
Available
for online order
+
Add to wish list
Διαθεσιμότητα Καταστήματος Αθήνας
Low Availability
The RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.
HAT Type:
  • Automation
Company:
Waveshare
MPN:
11638
Made in:
China
  •  The Raspberry Pi in the photos is NOT included.
  • Supports Raspberry Pi A+/B+/2B/3B
  • High quality relays, loads up to 250VAC/5A, 30VDC/5A
  • Photo coupling isolation, prevent interference from high voltage circuit
  • Onboard LEDs for indicating relays status
  • Relay control jumper, allows to control the relays by custom pins other than the default pins
  • Comes with development resources, including examples in wiringPi, WebioPi, shell, python, and bcm2835
Raspberry Pi Expansion Board on board resource
  1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
  2. Relay screw terminal: for connecting target devices
  3. Relays
  4. Photocoupler: PC817
  5. Relay indicator
    • LED on: relay NC is opened, NO is closed
    • LED off: relay NC is closed, NO is opened
  6. Power indicator
  7. Relay control jumper
    • short the jumper: control the relays by default I/Os used in the example code
    • open the jumper: control the relays by custom I/Os through jumper wires
  1. RPi Relay Board x1
  2. RPi screws pack (2pcs) x1
