Waveshare Servo Driver HAT 16-Ch 12-bit - I2C

από WAVESHARE
Servo Driver HAT (B) for Raspberry Pi, 16-Channel, 12-bit, I2C Interface, Right Angle Pinheader Needless to say, the Raspberry Pi is powerful enough...
31-00017035
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: Servo Driver HAT (B)
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
17.90
Χωρίς ΦΠΑ 14.44
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 16.11

ΠΕΡΙΓΡΑΦΗ

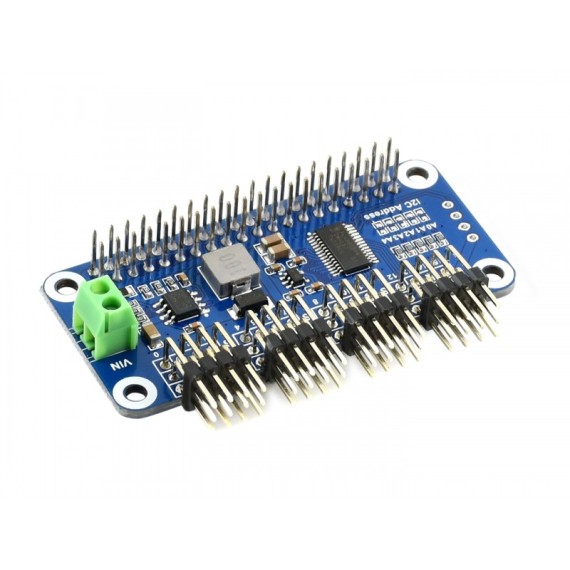

Servo Driver HAT (B) for Raspberry Pi, 16-Channel, 12-bit, I2C Interface, Right Angle Pinheader

Needless to say, the Raspberry Pi is powerful enough in most cases, yet it's not that good at providing precise PWM output. You may have tried to control a robotic arm or a hexapod walker by using the Pi, but finally get frustrated due to the limited number of PWM outputs and the jittering servo. Now you get a new option to bring your ideas to life, we prepare this useful Servo Driver HAT for you.

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. Servo Driver HAT (B) x1
  2. RPi screws pack (2pcs) x1

12



ΣΗΜΕΙΩΣΕΙΣ

  • Raspberry Pi and servos are NOT included.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τύπος HAT:
  • Motor Driver
Κατασκευαστής
:
WAVESHARE
Part Number:
Servo Driver HAT (B)
Μικτό Βάρος:
0.022kg
Χώρα Προέλευσης:
Κίνα
Συμβατό Raspberry:
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Model 2 B
  • Zero
  • Zero W

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Power supply: 5V (Pi connector) OR 6V~12V (VIN terminal)
  • Servo voltage: 5V
  • Logic voltage: 3.3V
  • Driver: PCA9685
  • Control interface: I2C
  • Dimension: 65 x 30mm
  • Mounting hole size: 3.0mm

This HAT can be used to drive servos such as:

ΔΥΝΑΤΟΤΗΤΕΣ

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • I2C controlled, using only 2 pins
  • Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
  • Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
  • Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
  • Reserved I2C control pins, allows to work with other control boards
  • Comes with development resources and manual (examples in python like Bluetooth/WiFi remote control)
