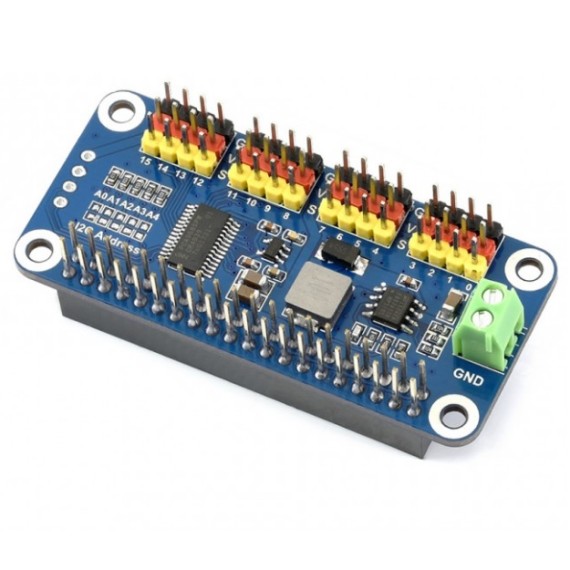

Waveshare Servo Driver HAT

από WAVESHARE
Needless to say, the Raspberry Pi is powerful enough in most cases, yet it's not that good at providing precise PWM output. You may have tried to control...
31-00015275
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: 15275
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
19.90
Χωρίς ΦΠΑ 16.05
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 17.91

ΠΕΡΙΓΡΑΦΗ

Needless to say, the Raspberry Pi is powerful enough in most cases, yet it's not that good at providing precise PWM output. You may have tried to control a robotic arm or a hexapod walker by using the Pi, but finally get frustrated due to the limited number of PWM outputs and the jittering servo. Now you get a new option to bring your ideas to life, we prepare this useful Servo Driver HAT for you.

  • Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
  • I2C controlled, using only 2 pins
  • Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
  • Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
  • Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
  • Reserved I2C control pins, allows to work with other control boards
  • Comes with development resources and manual (examples in python like Bluetooth/WiFi remote control)



ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. Servo Driver HAT x1
  2. RPi screws pack (2pcs) x1
12



ΣΗΜΕΙΩΣΕΙΣ

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τύπος HAT:
  • Motor Driver
Κατασκευαστής
:
WAVESHARE
Part Number:
15275
Μικτό Βάρος:
0.021kg
Χώρα Προέλευσης:
Κίνα
Συμβατό Raspberry:
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+
  • Model 2 B
  • Zero
  • Zero W

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Power supply: 5V (Pi connector) OR 6V~12V (VIN terminal)
  • Servo voltage: 5V
  • Logic voltage: 3.3V
  • Driver: PCA9685
  • Control interface: I2C
  • Dimension: 65mm x 30mm
  • Mounting hole size: 3.0mm
