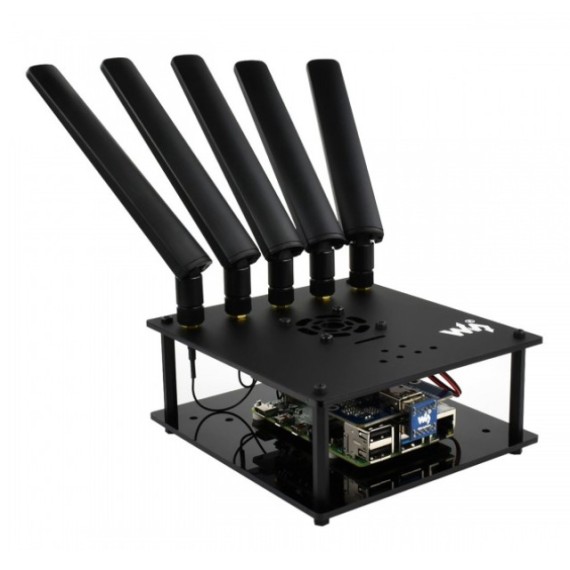

Waveshare SIM8200EA-M2 5G HAT

από Waveshare
SIM8200EA-M2 5G HAT FOR RASPBERRY PI Comes With SIM8200EA-M2, Supports 5G/4G/3G, Supports 5G SA And NSA, Multi Mode Multi Band, Applicable For Regions...
31-00019060
Ογκομετρικό βάρος: 1kg
Κατασκευαστής: Waveshare
Part Number: SIM8200EA-M2 5G HAT (EU)
Χώρα Προέλευσης: Κίνα
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
490.00
Χωρίς ΦΠΑ 395.16
+

ΣΥΝΔΥΑΣΕ ΤΟ ΜΕ

ΠΕΡΙΓΡΑΦΗ

SIM8200EA-M2 5G HAT FOR RASPBERRY PI

Comes With SIM8200EA-M2, Supports 5G/4G/3G, Supports 5G SA And NSA,
Multi Mode Multi Band, Applicable For Regions With 5G Sub-6G Signal Coverage

This 5G/4G/3G Raspberry Pi communication HAT adopts SIMCom 5G module SIM8200EA-M2, supports 5G NSA and SA networking, providing data rate up to 4 Gbps (DL)  /  500 Mbps (UL).

The base board features standard M2 connector, allows connecting with different 4G or 5G communication module with M2 package. There are also USB3.1 port, audio jack and decoder, SIM card slot, etc. Combined with our configuration script and development resources, it is easy to enable 5G high speed communication for the Raspberry Pi or computer. The 5G HAT is ideal for fast evaluating 5G modules, as well as being integrated into sorts of applications where 5G connection is required.

Features:

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Comes with SIM8200EA-M2 core module, based on Qualcomm snapdragon X55 platform, with multi mode multi band support
  • 5G/4G/3G communication support
  • USB3.1 port for testing AT commands, sending messages, cloud communication, making phone call, getting GNSS positioning data, etc.
  • SIM card slot, supports 1.8V / 3V SIM card
  • 2x LED indicators, easy to monitor the working status
  • AT command support, based on 3GPP TS 27.007, 27.005 and V.25TER command set
  • Onboard audio jack and audio decoder, allows audio operation like making phone call *
  • Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS
  • Operating system support: Windows/Linux/Android
  • Comes with quality acrylic case and cooling fan, nice looking, better heat dissipation
* Phone call is not available for the moment, further firmware update is required to support this feature.

Multi Mode Multi Band

Applicable For Most Of The Countries And Regions

Based on Qualcomm snapdragon X55 platform with multi mode multi band support.
Applicable for regions including China, Europe, the Middle East, South America...
Supports 5G NSA (4G+5G common networking) and SA (5G standalone networking), based on 5G NR/LTE-FDD/LET-TDD/HSPA+ cellular network

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

Multi System Support

Supports Windows/Android/Linux

Just plug it into USB port, go through some driver installation and simple configuration, the high speed 5G network connection would be ready to use

Multi Host Support

Enabling 5G High Speed Connection For Raspberry Pi And Windows Computer

  • Sub-6G: up to 4 Gbps (downlink) / up to 500 Mbps (uplink)*
  • LET: up to 2 Gbps (downlink) / up to 200 Mbps (uplink)*
  • HSPA+: up to 42 Mbps (downlink) / up to 5.76 Mbps (uplink)*

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Cloud Communication

Supported Communication Protocols:
TCP / IP / IPV4 / IPV6 / Multi-PDP / FTP / FTPS / HTTP / HTTPS / MQTTS / DNS / SSL3.0

Phone Call & SMS Support

Allows Using AT Commands To Make Phone Call Or Send SMS*

* not available for the moment, further firmware update is required to support this feature.

Setup Introduction

What's On Board

  1. Raspberry Pi GPIO header
  2. USB3.1 port
  3. Audio drive circuit
  4. Audio jack
  5. Reset
  6. Power switch
  7. 5V 3A input
  8. 5V to 3.3V translator
  1. 5V to 1.8V translator
  2. 5V to 4.3V translator
  3. Power indicator
  4. Network indicator
  5. M.2 connector
  6. SIM8200EA-M2
  7. Antenna connector
  8. Fan connector
  9. SIM card slot

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. SIM8200EA-M2 x1
  2. SIMXXXX-M2 4G/5G HAT base x1
  3. 5G/4G/3G/2G External Antenna x5
  4. Power adapter 5V 3A Micro x1
  5. USB3.0 dual plug cable x1
  6. USB3.0 Adapter x1
  7. USB2.0 Adapter x1
  8. 2×20PIN pin header x1
  9. Black acrylic case panel x1
  10. 4010 cooling fan x1
  11. Screws pack x1
  12. GPS passive antenna x1
  13. Screwdriver x1

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Τύπος HAT:
  • Wireless Communication
Κατασκευαστής
:
Waveshare
Part Number:
SIM8200EA-M2 5G HAT (EU)
Πρωτόκολλο:
  • GNSS
  • GPS
  • GSM / GPRS
  • Wifi
Καθαρό Βάρος:
1kg
Χώρα Προέλευσης:
Κίνα
Breadboard Friendly:
Πληροφορίες:
Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
Συμβατό Raspberry:
  • Model 4 B
  • Model 3 B+
  • Model 3 B

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Frequency band:
    • Sub-6G: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n40, n41, n66, n71, n77, n78, n79
    • LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B66/B71
    • LTE-TDD: B34/B38/B39/B40/B41/B42/B48
    • WCDMA: B1/B2/B3/B4/B5/B8
    • GNSS: GPS, GLONASS, Beidou, Galileo, and QZSS
  • Data rate:
    • Sub-6G: 4 Gbps (DL) / 500 Mbps (UL)
    • LTE: 2 Gbps (DL) / 200 Mbps (UL)
    • HSPA: 42 Mbps (DL) / 5.76 Mbps (UL)
  • Software functions:
    • Operating systems: Windows/Linux/Android
    • Communication protocols: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0
    • SMS: Supports MT, MO, CB, Text, PDU
    • Firmware upgrade: Supports firmware upgrade via USB port
  • Hardware info:
    • SIM card: 1.8V/3.0V
    • Power supply: 5V 3A
    • Antenna connector: 6x IPEX-4 connector
    • Module dimensions: 52.0x30.0x2.3mm
  • Applications:
    • Applicable regions: Regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America, etc.
    • Application examples: CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security
