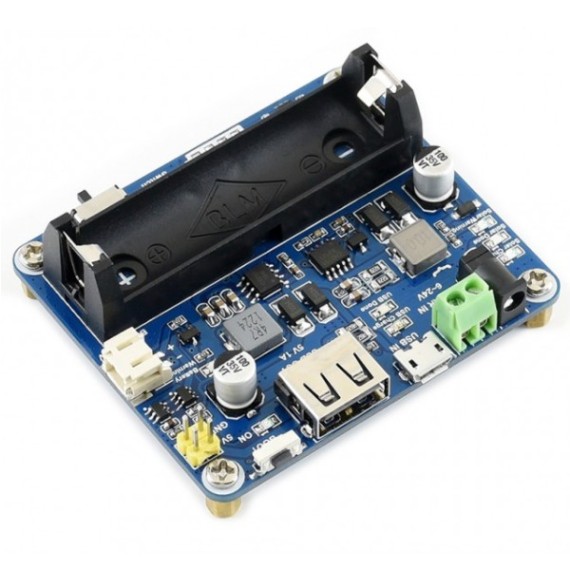

Waveshare Solar Power Manager 6-24V

31-00016120
Solar Power Manager (EN)
CompanyWaveshare Part NumberSolar Power Manager (EN)
In Stock
Ships in 24 Hours
€1120
Waveshare
Our quantity discounts:
Quantity
10+
Price
€10.08
+ −
Add to wish list
Ask a question
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping
Solar Power Set 6W
Price for all
Order discount: €0.00
€29.80 €29.80

This solar power management module is designed for 6V~24V solar panel. It can charge the 3.7V rechargeable Li battery through solar panel or USB connection, and provides 5V/1A regulated output.

The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep working with high-efficiency, stability, and safety. It is suited for solar powered, low-power IoT, and other environmental protection projects.

Application Example

NOTES

  • CAUTION: DO NOT put any non-rechargeable battery, like dry cell, into the battery holder. Serious consequences including explosion may occur if you try to charge a non-rechargeable battery.
  • The 14500 battery is NOT included.

What's on Board

  1. Solar panel charging input: charged by solar panel, DC-002 jack or screw terminal
  2. USB charging input: charged by USB connection, connect a 5V power adapter through the Micro USB port
  3. 5V/1A power output: provides regulated 5V/1A output, USB port or 2.54mm pinheader
  4. Battery interfaces: for connecting 3.7V rechargeable Li battery, PH2.0 connector or 14500 battery holder
  5. CS8501: USB power management chip, for USB charging and 5V/1A boost output
  6. CN3791: solar power management chip, for solar panel charging and buck input
  7. Li battery protection chip: Li battery over charge / over discharge protection
  8. Battery switch
  9. MPPTSET switch (bottom side):
    supported level: 6V/9V/12V/18V/24V
    select the level closed to input level to improve charging efficiency
  10. BOOT key
  11. Battery capacity indicators
  12. USB charging indicators:
    USB Charge: on when USB charging
    USB Done: on when the battery is full charged by USB
  13. Solar panel charging indicators:
    Solar Charge: on when solar panel charging
    Solar Done: on when the battery is full charged by solar panel
    Solar Warning: on when solar panel reverse connection
  14. Battery warning: on when battery reverse connection
  15. Power output indicator: 5V/1A output
  • Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
  • Supports solar panel / USB connection battery charging
  • For 6V~24V solar panel, DC-002 jack input or screw terminal input
  • Onboard MPPT SET switch, select the level closed to input level to improve charging efficiency
  • Two 5V output interfaces: pinheaders and USB port
  • Onboard high capacity aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance
  • 14500 battery holder and PH2.0 battery connector, for connecting multi kinds of 3.7V rechargeable Li battery
  • Several LED indicators, for monitoring the status of solar panel and battery
  • Multi protection circuits: over charge / over discharge / reverse protection / over heat / over current, stable and safe to use

Selection Guide
Product

Waveshare Solar Power Manager 6-24V

Waveshare Solar Power Manager (B) 6-24V – 10000mAh

Waveshare Solar Power Manager (C) 6-24V – 3×18650

Waveshare Solar Power Manager (D) 6-24V

GRobotronics SKU31-0001612031-0001979931-0002090931-00026363 (with battery holder)
31-00026362 (without battery holder)
Solar In6V ~ 24V (6V by default)6V ~ 24V (18V by default)6V ~ 24V
RechargingSolar panel, power adapter, USB
Battery3.7V 14500 Li-ion battery (NOT included)3.7V 10000mAh Li-po battery3x 18650 Li-ion battery (NOT included)3.7V Li-ion battery (NOT included)
USB Input5V (Micro USB)5V (TYPE-C, with PD quick charge support)
5V Output5V / 1A (USB OUT, pin header) 3.3V / 1A (pin header)5V / 3A (USB-OUT, TYPE-C)5V / 3A (Screw terminal, TYPE-C)
Recharging Cutoff Voltage4.2V ± 1％
Over Discharging Protection Voltage2.9V ± 1％3.0V ± 1％
Solar Panel Recharging Efficiency~ 78％
USB Recharging Efficiency~ 82％~ 93％
Batteries Boost Output Efficiency~ 86％~ 90％
Quiescent Current (Max)<2mA<80mA<30mA
CaseN/AMetal caseN/A
Operating Temperature-40℃ ~ 85℃
Dimensions (mm)65.2 × 56.2 × 22.9108.0 × 71.0 × 25.2119.0 × 71.0 × 25.245.0 x 40.0 x 16.1
Company
Waveshare
Part Number
Solar Power Manager (EN)
Warranty
12 Month Manufacturer Warranty
G. Weight
0.029kg
Chemistry
  • Lithium-Ion (Li-Ion)
