Waveshare Solar Power Manager (B) - 10000mAh

31-00019799
Solar Power Manager (B)
CompanyWaveshare Part NumberSolar Power Manager (B)
Out of Stock
This product will be back in stock on Wednesday, 11 December 2024
3290
Our quantity discounts:
Quantity
10+
Price
29.61
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

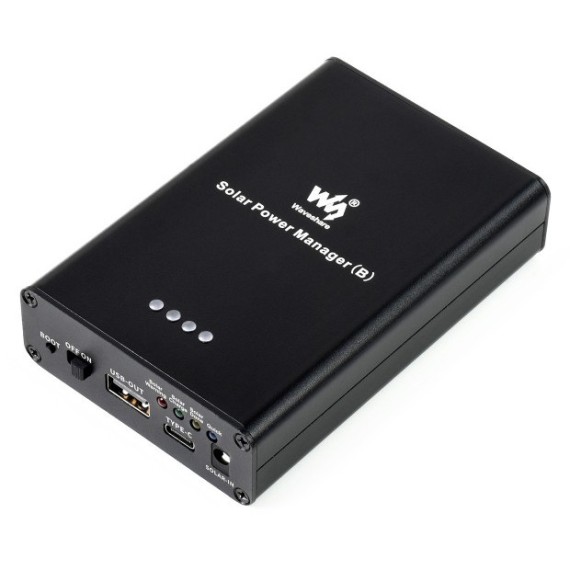

The Solar Power Manager (B) is compatible with general 6V~24V solar panels. It can recharge the 3.7V rechargeable Li-po battery through solar panel or USB TYPE-C connection, and provides 5V / 3A regulated output (with multi protocols support including PD/QC/FCP/PE/SFCP).

The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep operating with high-efficiency, stability, and safety. It is suitable for solar powered, low-power IoT, and other environmental protection projects.

  • Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
  • Flexible battery recharging: from solar panel or USB TYPE-C power adapter
  • Compatible with 6V~24V solar panels, DC-002 jack input or screw terminal input
  • Onboard MPPT SET switch, select the level closed to input level to improve recharging efficiency
  • Onboard aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance
  • PH2.0 battery connector, with embedded 10000mAh 3.7V rechargeable Li-po battery
  • Several LED indicators, for monitoring the status of solar panel and battery
  • Multi protection circuits: over charge / over discharge / reverse-proof / over heat / over current, stable and safe to use

Supports 6V~24V Solar Panels

5-Level Voltage Switch, For Setting Solar Panel Input Voltage To Improve Efficiency



THE PACKAGE INCLUDES

  1. Solar Power Manager (B) x1
  2. Adapter x1
12


NOTES

  • The Raspberry Pi, display, solar panel are NOT included.

More Possibilities

Suitable For Mini Solar Road Lamp, Intelligent Agriculture, Or IoT Applications

Resources Introduction


  1. Solar panel input
    recharging through DC-002 jack or screw terminal
  2. TYPE-C recharging/output port
    supports 5V power adapter for recharging
    supports PD protocol quick charge adapter
    supports PD/QC/FCP/PE/SFCP multi protocols output
  3. USB output port
    5V/3A regulated output
    supports PD/QC/FCP/PE/SFCP multi protocols output
  1. Battery on/off switch
  2. BOOT button
  3. Quick charge indicator
  4. Solar panel status indicators
    Solar Warning: lights up if solar panel is reversed
    Solar Charge: lights up when recharging from solar panel
    Solar Done: lights up when the battery is fully recharged
  5. Battery life indicators

Application Example

Solar-Powered Control System For MCUs / Development Boards Like: Raspberry Pi / Jetson Nano / Arduino...

  • Solar In: 6V ~ 24V (18V by default)
  • Recharging: Solar panel, power adapter, USB
  • Battery: 3.7V 10000mAh Li-po battery
  • USB Input: 5V (TYPE-C, with PD quick charge support)
  • 5V Output: 5V / 3A (USB-OUT, TYPE-C)
  • Recharging Cutoff Voltage: 4.2V ± 1%
  • Over Discharging Protection Voltage: 2.9V ± 1%
  • Solar Panel Recharging Efficiency: ~78%
  • USB Recharging Efficiency: ~93%
  • Batteries Boost Output Efficiency: ~92%
  • Quiescent Current (max): <2mA
  • Case: Metal case
  • Operating Temperature: -40℃ ~ 85℃
  • Dimensions: 108x71x25.2mm

Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Waveshare
G. Weight
0.29kg
Chemistry
  • Lithium-Ion Polymer (Li-Po)
Rated Voltage
3.7 Volt
Capacity
10000 mAh
Packing
1 Pcs.
