Waveshare USB 3.2 Gen1 HUB HAT - 4xUSB 3.2

31-00017584
ΚατασκευαστήςWaveshare
Διαθέσιμο
Αποστολή σε 24 ώρες
€2360
Waveshare
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€21.24
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

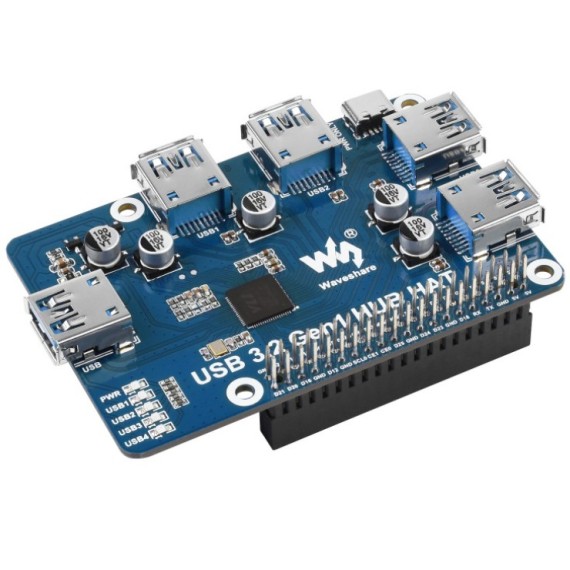

USB 3.2 Gen1 HUB HAT For Raspberry Pi, 4x USB 3.2 Gen1 Ports, Driver-Free

This is a driver-free 4 ports USB 3.2 Gen1 hub HAT for Raspberry Pi, provides more USB capability to your Pi, make it easy to connect more USB devices.

The HAT features standard Raspberry Pi 40PIN GPIO extension header, when working with Raspberry Pi 4, the USB 3.2 Gen1 ports is able to provide up to 5 Gbps data rate, which means 10 times faster than USB 2.0.

Features:

  • 4x USB 3.2 Gen1 ports, compatible with USB 3.0 / 2.0 /1.1
  • Onboard external USB-C 5V DC power port, ensures more stable power supply
  • 1x power indicator and 4x USB port indicators, easy to check the operating status
  • Driver-free, plug and play, compatible with OS including Windows, mac OS, Linux and Android
  • Purpose-made for Raspberry Pi 4, compatible with other Raspberry Pi version as well
  • Comes with development resources and manual

What's On Board

  1. Raspberry Pi GPIO header
    for connecting Raspberry Pi
  2. USB 3.2 Gen1 HUB input
    connects to Raspberry Pi USB port
  3. USB 3.2 Gen1 extended ports
    USB1~USB4
  4. PWR ONLY port
    for external USB-C 5V DC power input
  5. VL817-Q7
    USB HUB chip
  6. MX25L512EOI-10G
    FLASH chip
  7. PWR
    power indicator
  8. USB1~USB4
    USB1~USB4 indicators

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. USB 3.2 Gen1 HUB HAT x1
  2. USB 3.0 Adapter x1
  3. USB 2.0 Adapter x1
  4. USB 3.0 dual plug cable x1
  5. RPi screws pack (2PCS) x1
12345


ΣΗΜΕΙΩΣΕΙΣ

  • Only Raspberry Pi 4B and Pi 400 support USB 3.0 for the moment, therefore, when working with other previous Raspberry Pi versions, there will be a data rate degradation.
  • Raspberry Pi is NOT included.

Designed For Raspberry Pi Series
Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards
External Power Supply Support
Onboard External USB-C 5V DC Power Port
Combined with the Raspberry Pi USB power source, it is capable of connecting more USB loads, even the high-power disk device
Multiple Indicators
Easy To Check The Operating Status Of Power And USB Ports
Various USB Devices Support
Driver Free, Plug & Play
Compatible With OS Including Windows, Mac OS, Linux And Android
  • Dimensions:

Κατασκευαστής
Waveshare
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.01kg
Συμβατότητα
  • Raspberry Pi 4
  • Raspberry Pi 5
  • Raspberry Pi Zero
Τύπος HAT
  • USB
