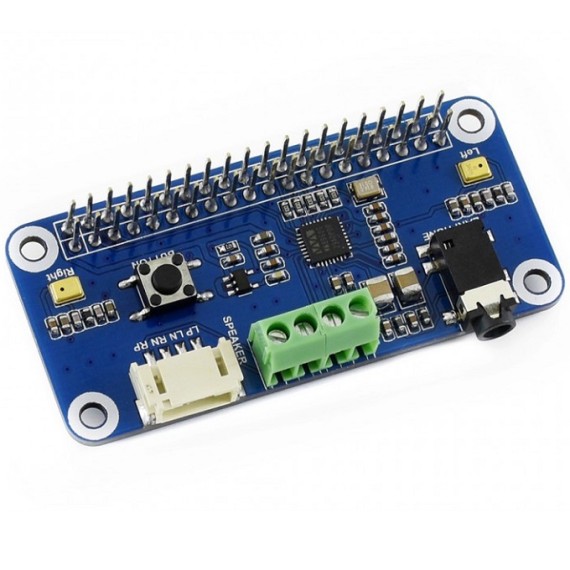

Waveshare WM8960 Hi-Fi Sound Card HAT

This is a sound card HAT designed for Raspberry Pi, low power consumption, supports stereo encoding / decoding, features Hi-Fi playing / recording, what's...
31-00015668
Volumetric weight: 0.2kgs
Company: Waveshare
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
18.50
Without VAT 14.92
+
WISHLIST COMPARE

DESCRIPTION

This is a sound card HAT designed for Raspberry Pi, low power consumption, supports stereo encoding / decoding, features Hi-Fi playing / recording, what's more, it can directly drive speakers to play music.

SPECIFICATIONS

HAT Type:
  • Audio

Notes

  • Raspberry Pi in the photos is NOT included.

EXTRA SPECIFICATIONS

  • CODEC: WM8960
  • Power supply: 5V
  • Logic voltage: 3.3V
  • Control interface: I2C
  • Audio interface: I2S
  • DAC signal-noise ratio: 98dB
  • ADC signal-noise ratio: 94dB
  • Earphone driver: 40mW (16Ω@3.3V)
  • Speaker driver: 1W per channel (8Ω BTL)

FEATURES

  • Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
  • Integrates WM8960 low power stereo CODEC, communicates via I2S interface
  • Integrates dual high-quality MEMS silicon Mic, supports left & right double channels recording, nice sound quality
  • Onboard standard 3.5mm earphone jack, play music via external earphone
  • Onboard dual-channel speaker interface, directly drives speakers
  • Supports sound effects such as stereo, 3D surrounding, etc.
  • Comes with development resources and manual (python demo code for playing / recording)

Dimensions

Contents

  1. WM8960 Audio HAT x1
  2. 8Ω 5W Speaker x1
  3. RPi screws pack (2pcs) x1
