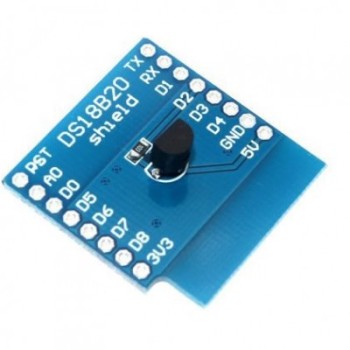

WeMos D1 Mini Temperature Shield - DS18B20

by WeMos
This shield is mounted with DS18B20 digital thermometer that provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with...
19-00011992
Volumetric weight: 0.01kgs
Company: WeMos
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
3.20
Without VAT 2.58
+
WISHLIST COMPARE

DESCRIPTION

This shield is mounted with DS18B20 digital thermometer that provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with non-volatile user-programmable upper and lower trigger points. This sensor can be interfaced using 1-Wire bus that by definition requires only one data line and ground for communication. The pin used for this sensor is D2 pin of WeMos D1 Mini and Mini PRO, which rendered this shield to be not I2C compatible.

  • 1-Wire Interface
  • Measures Temperatures from -55°C to +125°C (-67°F to +257°F)
  • ±0.5°C Accuracy from -10°C to +85°C
  • Programmable Resolution from 9 Bits to 12 Bits
  • Parasitic Power Mode Requires Only 2 Pins for Operation (DO and GND)



NOTES

  • Pin Headers require soldering.



THE PACKAGE INCLUDES

  • 1x DS18B20 Module
  • 2x Long female pin
  • 2x Short female pin
  • 2x Normal pin

EXTRA SPECIFICATIONS

  • Supporting the D1 MINI
  • The Arduino Compatible, Using Arduino IDE Programming
  • 11 the XI/O Pins
  • 1 XADC Pin (0-3.3V)
  • Support the OTA online
