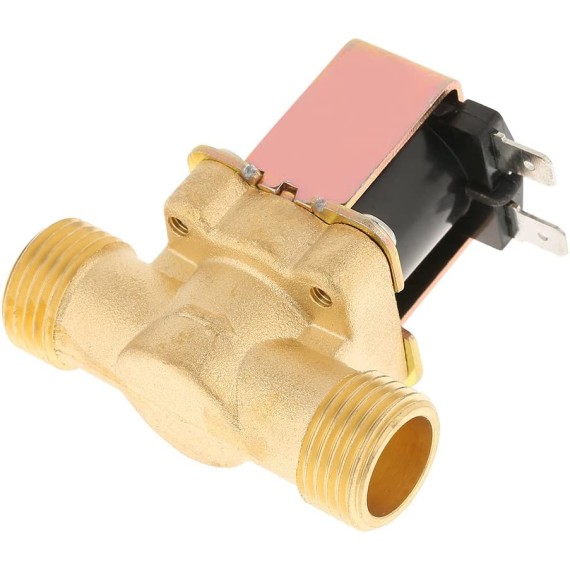

Ηλεκτροβάνα Μπρούτζινη 12V - 1/2"

από OEM
Excellent Performance: This DC 12V solenoid magnetic valve adopts professional manufacturing process with high reliability, wear-resistant and high...
19-00016635
Ογκομετρικό βάρος: 0.2kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
14.80
Χωρίς ΦΠΑ 11.94
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 11.84

ΠΕΡΙΓΡΑΦΗ

Excellent Performance:

This DC 12V solenoid magnetic valve adopts professional manufacturing process with high reliability, wear-resistant and high temperature resistant, no power consumption, which has direct stability of water adjustment.

Premium Quality:

This 1/2" water valve adopts brass casting structure, which is corrosion-resistant and precise. It is not easily damaged and rust, has reliable quality and ensures high strength for long-lasting usage.

Function Introduction:

The pressure regulating valve's (steady flow valve) function is similar to water flow switch. This electric solenoid magnetic valve not only can keep the constant current steady flow, but also can prevent the dry burning and monitoring the flow.

Easy to Use:

This water solenoid magnetic valve is easy to install and maintain, which is an ideal product for your old or broken one.

Wide Applications:

This 12V 1/2" water solenoid valve has high practicality, which is suitable for water, high-end water heaters, intelligent drinking fountains, water heaters, straight drinking machines, water purification machines, steam machines, energy-saving air-conditioning, water treatment, cooling equipment and water industry and other fields.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.2kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Environmental conditions for inlet valve of low pressure solenoid valve
    • Altitude:< 2,500 meters
    • Ambient temperature: 0 to 40 ° C
    • Air relative humidity: <95% (25 ° C temperature)
  • Type and rated technical parameters
    • Type: Guide (one-way) solenoid valve
    • Rated voltage: 12V
    • Rated current: 12v-300mA
    • Working mode: Short-time quota system (intermittent duty cycle)
    • Insulation grade: E
    • Use of fluid: (0-55°C) water
    • Use water pressure: 0.02-0.8Mpa
  • Water flow characteristics
    • Water pressure (Mpa): 0.02, 0.1, 0.3, 0.8
    • Flow (L/min): > 5 >11 >18 >32
    • Nominal diameter:
      • 4 points double thread
      • Outlet diameter: 13mm
      • Life: >100,000 times

ΔΥΝΑΤΟΤΗΤΕΣ

  • This electric solenoid valve is all brass casting structure, precise and reliable
  • Pressure regulating valve (steady flow valve) function similar to water flow switch.
  • This solenoid valve not only can keep the constant current steady flow, but also prevent the dry burning and monitoring the flow.
  • Mechanical no power consumption, steady flow adjustable.
  • This electric solenoid valve has the characteristic of wear-resistant, anti-corrosion and high temperature resistance.
  • Suitable for water, high-end water heaters, intelligent drinking fountains, water heaters, straight drinking machines, water purification machines, steam machines, energy-saving air-conditioning, water treatment, cooling equipment and water industry and other fields.
