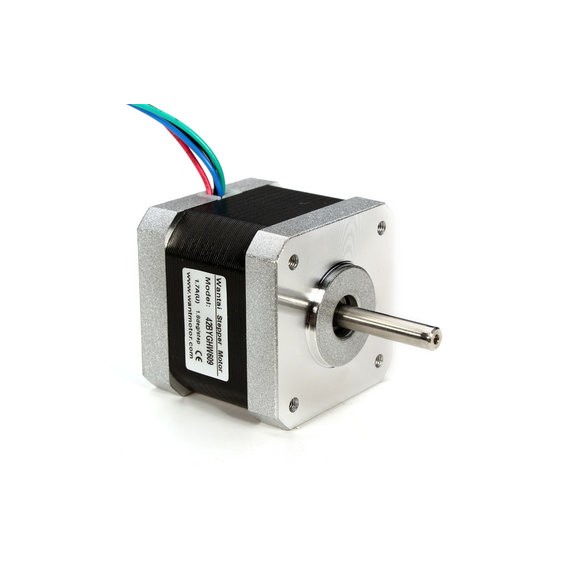

Stepper Motor 42BYGHM809 - 4.5kg.cm (400 steps/rev)

These steppers are a great way to get things moving, especially when positioning and repeatability is a concern.
14-00010846
Gross Weight: 0.4kg
Company: Wantai Motors
Made in: China
In Stock
Ships in 24 Hours
Available in store
16.90
Without VAT 13.63
+
WISHLIST COMPARE

DESCRIPTION

High-torque stepper motor in size NEMA 17 (42 mm) with 0.9° step angle (full step) with D-Shaft for easy and reliable connection with coupler. These steppers are a great way to get things moving, especially when positioning and repeatability is a concern. This is a Bipolar motor.

SPECIFICATIONS

Step Angle:
0.9
Holding Torque:
4.5kg.cm
Rated Voltage:
3Volt
Rated Current:
1.7A/Phase
Form Factor:
NEMA 17

NOTES

  • This stepper comes with D-Shaft.
  • Plug is not included.

SPECIFICATIONS

  • Step Angle (degrees): 0.9
  • 2-Phase (4-Wires)
  • Rated Voltage: 3V
  • Rated Current: 1.7A/Phase
  • Holding Torque: 45N.cm (4500g-cm)
  • Resistance: 1.65Ω/phase
  • Inductance: 4mH/phase
  • Form factor: NEMA 17

Διαστάσεις

  • 42 x 42 x 48mm
  • Weight: 360g
  • Shaft Diameter: 5mm
  • Shaft Length: 22mm
  • Cable Length: 45mm
  • 4 x M3 Holes for mounting base
