Stepper Motor 57BYGH420 - 9kg.cm

These steppers are a great way to get things moving, especially when positioning and repeatability is a concern.

14-00010847
Volumetric weight: 0.7kgs
Company: Wantai Motors
Made in: China
Out of Stock
Product out of stock
No stock in retail store
23.90
Without VAT 19.27

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

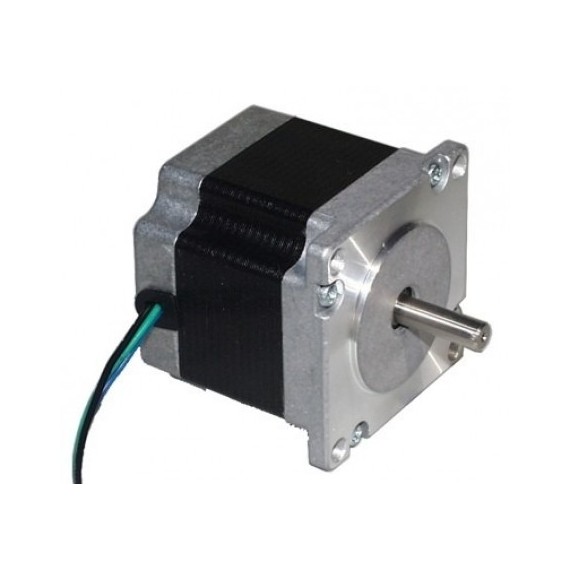

High-torque stepper motor in size NEMA 23 (56mm) with 1.8° step angle (full step) with D-Shaft for easy and reliable connection with coupler. These steppers are a great way to get things moving, especially when positioning and repeatability is a concern. This is a Bipolar motor.

SPECIFICATIONS

Step Angle:
1.8
Holding Torque:
9kg.cm
Rated Voltage:
3.6Volt
Rated Current:
2A/Phase
Form Factor:
NEMA 23

Notes

  • This stepper comes with D-Shaft.
  • Plug is not included.

EXTRA SPECIFICATIONS

  • Step Angle (degrees): 1.8
  • 2-Phase (4-Wires)
  • Rated Voltage: 3.6V
  • Rated Current: 2A/Phase
  • Holding Torque: 90N.cm (9000g-cm)
  • Resistance: 1.8Ω/phase
  • Inductance: 2.5mH/phase
  • Form factor: NEMA 23

Dimensions

  • 56 x 56 x 54mm
  • Weight: 700g
  • Shaft Diameter: 1/4" (6.35mm)
  • Shaft Length: 19mm
  • Cable Length: 30mm
  • 4 x 5.3mm Holes for mounting base
