AC-DC Converter Step-Down 12V 450mA

39-00032825
In Stock
Ships in 24 Hours
480
Our quantity discounts:
Quantity
10+
Price
3.84
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

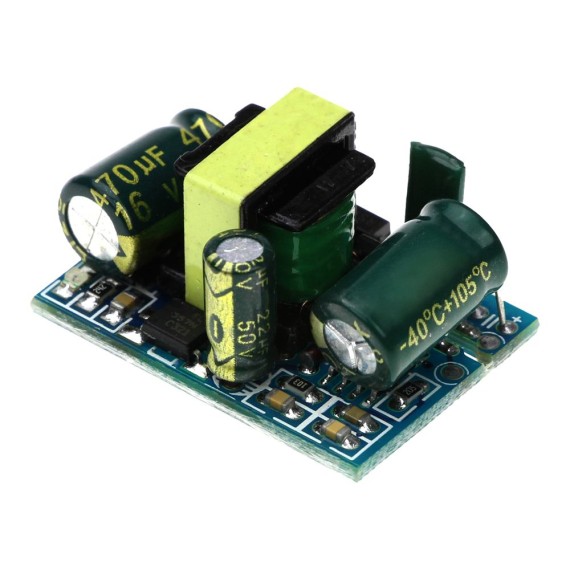

This power source for the isolation industrial-grade module power supply, temperature protection, over current protection and short circuit protection, high and low voltage isolation.

AC 85-265V wide voltage input, ac/dc current, precision voltage stability DC 12V output.

Small size, stable performance, cost-effective.

  • Input voltage: AC 85-265V 50/60 HZ
  • Output voltage: DC 12V (±0.1V)
  • Output current: 450mA
  • Power: 5W
  • Use Environment:
    • Working temperature: -20-60℃
    • Relative humidity:40-90%RH
  • Dimensions:30x20x18mm
  • Technical requirements:
    • Input voltage range: 85-265V
    • Input current:
      • 0.0273A (AC110V)
      • 0.014A (AC220V)
    • Input Inrush Current: 20A
    • Output voltage range:
      • 11.80-12.1V
      • 0-500mA
    • Output power: 0-6.0 W
    • Output efficiency: 80%

Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Oem
Input Voltage
100...240V AC Volt
Output Voltage
12 Volt
Output Current
0.45 Amp
G. Weight
0.01kg
