Acebott Leonardo R3

69-00012416
QA016
Διαθέσιμο
Αποστολή σε 24 ώρες
990
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

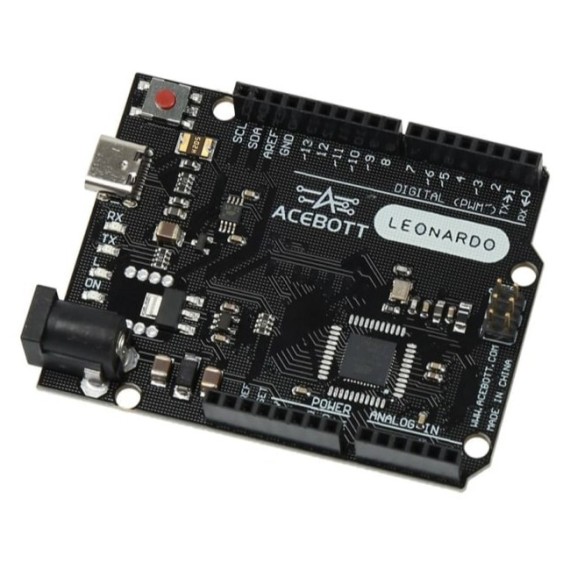

The Acebott Leonardo R3 development board is based on the Atmega32u4 microcontroller, just like the original Arduino Leonardo. It includes digital I/O pins, analog input pins, PWM output pins, and interfaces for UART, I2C, and SPI, among others. The Leonardo differs from all preceding boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial/COM port.

Features
  • Microcontroller: ATmega32u4
  • Operating Voltage: 5V
  • Input Voltage: 7-12V
  • Digital I/O Pins: 20
  • PWM Channels: 7
  • Analog Input Channels: 12
  • DC Current per I/O Pin: 10mA
  • 3.3V Port Output Current: 50mA
  • Flash Memory: 32kB (4kB used by bootloader)
  • SRAM: 2.5kB
  • EEPROM: 1kB
  • Clock Speed: 16MHz
  • Power supply port: Type-C
Resources

Acebott documentation


Κατασκευαστής
Acebott
Part Number
QA016
Καθ. Βάρος
0.04kg
Μικροελεγκτής
ATmega32u4
Τάση λειτουργίας
5V
Τάση εισόδου
7-12V
Τάση εισόδου (limits)
6-20V
Ψηφιακά I/O Pins
20
Αναλογικές εισόδους
12
PWM εισόδους
7
DC Ρεύμα ανά I/O Pin
10 mA
DC Ρεύμα για 3.3V Pin
50mA
Μνήμη Flash
32 KB
Ram Memory
2.5 KB (ATmega32u4)
Μνήμη EEPROM
1 KB (ATmega32u4)
Ταχύτητα (Clock Speed)
16 MHz
