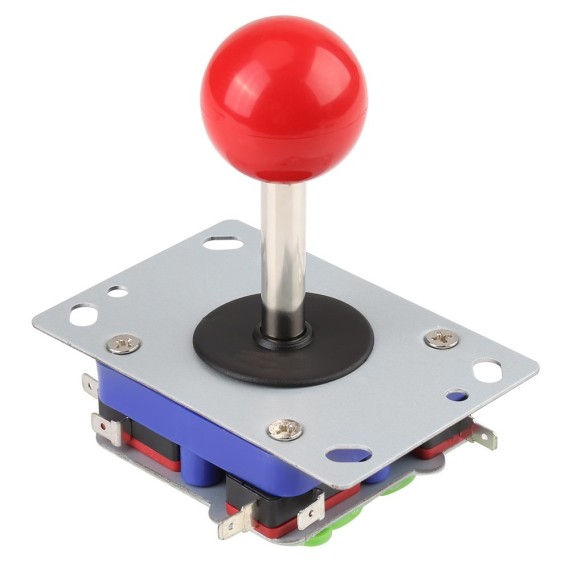

Arcade Joystick - Red Handle

από OEM
This ball top joystick is a good low-cost alternative to other branded joysticks we sell and is ideal for arcade machine. This ball top joystick is the...
22-00019182
Ογκομετρικό βάρος: 0.25kg
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
9.90
Χωρίς ΦΠΑ 7.98
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+ 1000+
Τιμή 7.92 6.93 5.94

ΠΕΡΙΓΡΑΦΗ

This ball top joystick is a good low-cost alternative to other branded joysticks we sell and is ideal for arcade machine. This ball top joystick is the perfect choice for first time arcade cabinet builders or customers with a budget to stick to. It can be used in bar top arcade machines, upright arcade machines and cocktail arcade machines.

Each joystick comes complete with a 35mm ball top handle, which can easily be unscrewed, should you ever wish to replace or change the joystick handle at a later date. The joystick handles are available in Red colour.

This joystick features a short shaft and a plastic restrictor gate on the bottom, which can be set for 2, 4 or 8 way movement, by simply undoing the screws and moving the restrictor into the required position.



ΣΗΜΕΙΩΣΕΙΣ

  • This joystick is fitted with 4x Microswitches with 4.8mm terminals.
  • Each microswitch will require 1x 4.8mm crimped wire for ground connection and 1x 4.8mm crimped wire for signal connection.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
OEM
Καθαρό Βάρος:
0.25kg
Χώρα Προέλευσης:
Κίνα
Breadboard Friendly:
Είδος Εξαρτήματος:
Joystick

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • ABS plastic and solid alloy construction
  • Uses 4 microswitches to detect on/off position
  • Unique handle design
  • Spring return to center
  • Very rugged construction
  • Rated 5A @ 125V, 3A @ 250V
  • Dimensions:
    • Overall height: 110mm
    • Base: 97x65mm
    • Joystick height: 70mm
