Quick Connector Wire Pairs for Arcade Button - 4.8mm / 0.187'' (Pack of 10)

49-00003835
ΚατασκευαστήςOEM
Διαθέσιμο
Αποστολή σε 24 ώρες
€480
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€3.84
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

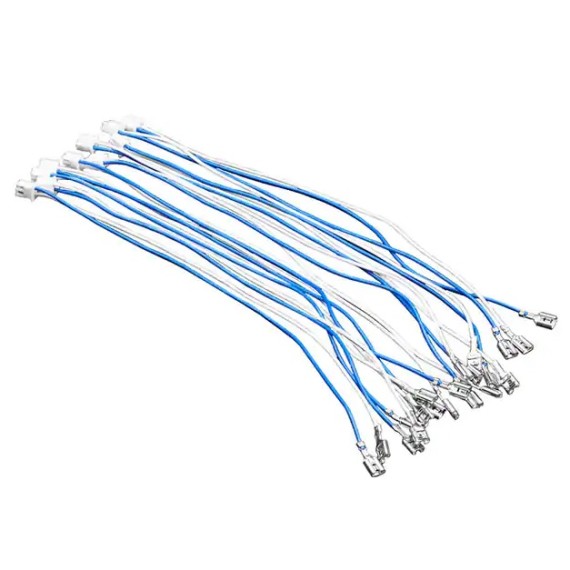

Quick connector wire sets make wiring up our arcade-style or metal buttons quicky-quick. Each wire comes as a 'pair' with two 4.8mm / 0.187'' quick-connects pre-crimped.

The wires are terminated together in a JST 2.5mm 2-pin connector. This connector will fit in 0.1" headers, so it's breadboard compatible or you can stick two wires into the end.

We also have versions with 2.8mm / 0.11" and 6.4mm / 0.25" terminal contacts, for our micro switches and larger arcade buttons.

ΣΗΜΕΙΩΣΕΙΣ

  • If you need a connector for the other side, try this JST XH.
  • We've also noticed that while these are the right size, they may be a little loose on some switches. You can crimp them a little more with a pair of pliers to get a better grip!
Κατασκευαστής
OEM
Μικτό Βάρος
0.044kg
Τύπος Ακροδέκτη
  • Flat 4.8mm
  • JST XH
