Barcode Scanner Module 2D - Barcode/QR

31-00024468

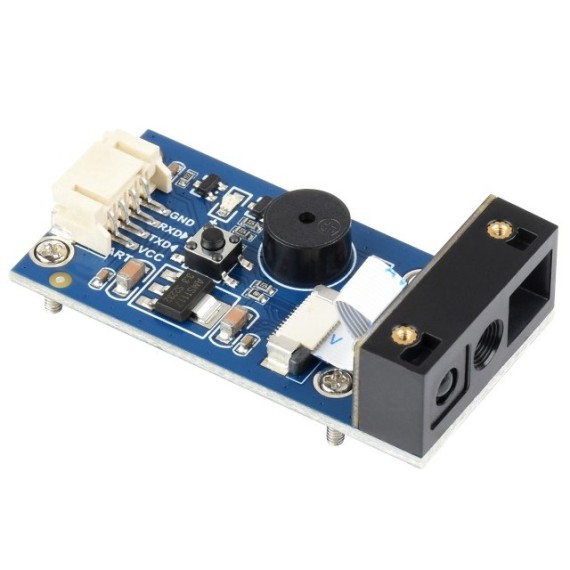

Barcode Scanner Module (C)
CompanyWaveshare Part NumberBarcode Scanner Module (C)
In Stock
Ships in 24 Hours
5580
Our quantity discounts:
Quantity
10+
Price
50.22
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

2D Codes Scanner Module
1D/2D Codes Recognition | High Accuracy | Screen Scanning

The Barcode Scanner Module (C) is a Barcode/QR codes scanner module, by using the intelligent image recognition algorithm, it can decode the 1D or 2D code on paper or screen fastly and accurately. Supports a variety of barcode formats and high accuracy, high speed and high contrast barcode scanning. Onboard USB and UART interfaces, can be directly plugged into a computer, or be easily integrated into kinds of embedded devices.

Onboard Resource



  • Resolution: 640x480
  • Scan Angels: pitch ±60°, skew ±60°, roll 360°
  • Scan Mode: Sensing, Continuous, Manual (default)
  • Accuracy:
    • 1D Codes 3mil
    • 2D Codes 5mil
  • Communication Interface: USB keyboard mode (default), USB virtual port, UART port
  • Light Source: White (Lighting) + Green (Aiming), both are visible light
  • Power Supply: 5V / 3.3V
  • Current:
    • Operating: 250mA
    • Stanby: 20mA
    • Boot: 258mA
  • Temperature:
    • Operating: -20 ~ +60°C
    • Storage: -40 ~ +70°C

CODE TYPE BARCODE BARCODE SCANNER MODULE (C)
READABLE DEFAULT READABLE
2D QR Code
Micro QR
DataMatrix
PDF417
Micro PDF417
Aztec
1D EAN-13
EAN-8
UPC-A
UPC-E
ISSN
ISBN
Codabar
Code 128
Code 93
Code 39
Code 11
ITF-14
ITF-6
Interleaved 2 of 5
Industrial 2 of 5
Matrix 2 of 5
CS Databar(RSS)
MSI-Plessey

Note: some supported barcode formats are disabled by default, you can scan 'configuration code' to enable it

Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Waveshare
G. Weight
0.01kg
Sensor Type
  • ID
Typical Input Voltage
  • 3.3VDC
  • 5VDC
Oparating Current
250mA
Interface
  • Digital
Communication Protocol
  • UART
  • USB
