Round Barcode Scanner Module 2D - Barcode & QR

31-00025515
Barcode Scanner Module (D)
CompanyWaveshare Part NumberBarcode Scanner Module (D)
In Stock
Ships in 24 Hours
3200
Our quantity discounts:
Quantity
10+
Price
28.80
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

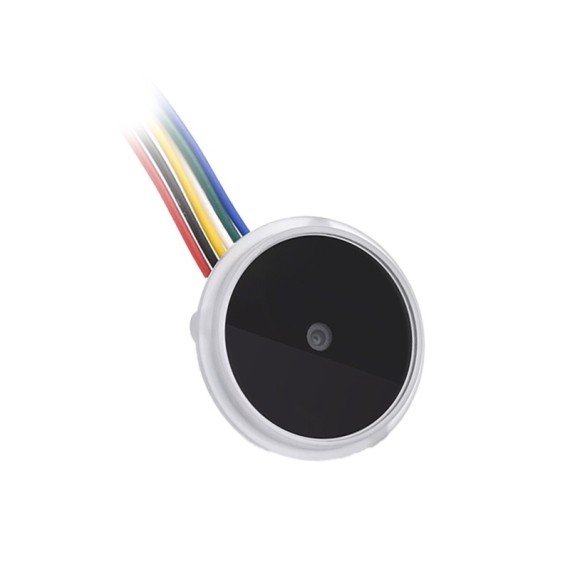

Round 2D Codes Scanner Module, Barcode/QR code Reader, with LED Indicator and small size, Easy to Integrate

The Barcode Scanner Module (D) is a round 2D barcode scanner module with LED indicator, highly integrated and compact size, suitable for elevator and other code scanning applications. Adopts advanced image recognition algorithms, easy to decode various 1D or 2D codes. Onboard UART interface, can be easily integrated into kinds of embedded devices

LED Indicator

Application Examples

  • Resolution: 640×480
  • Scan Angles: horizontal 70°, vertical 55°, roll 360°
  • Scan Mode: Sensing, Continuous
  • Accuracy: 1D code ≥5mil / 2D code ≥10mil
  • Communication Interface: UART port (9600 8N1 by default)
  • LED Indicator: Blue=scanning / Green=decoded successfully
  • Power Supply: 3.3V
  • Current: 120mA

  • Protection
    • ESD Protection: contact discharge 6 kV, air discharge ±12KV
    • IP Protection: IP54 (front side)
  • Temperature
    • Operating: -30 ~ +70°C
    • Storage: -40 ~ +80°C
    • Working Humidity: 5%RH ~ 95%RH (non-condensing)

Pin Description

  1. GND: Ground
  2. RX: UART input pin
  3. TX: UART output pin
  4. VCC: 3.3V power supply
  5. NC: Reserved, not connected
  6. NC: Reserved, not connected

In the box

  1. Barcode Scanner Module (D) x1
  2. 6PIN squid cable without header x1
  3. 6PIN squid cable x1



Outline Dimensions

Weight: 0.004 kg

Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Waveshare
G. Weight
0.023kg
Sensor Type
  • Camera
Typical Input Voltage
  • 3.3VDC
Oparating Current
120mA
Communication Protocol
  • UART
