BOSON Smart Science Pack - Earthquake Challenge

από DFROBOT
We all know how do earthquakes occur and what destruction they cause. But as for now, we cannot predict exactly when an earthquake will happen. So the...
25-00094866
Ογκομετρικό βάρος: 0.1kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: TOY0084-lite-EC
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
39.90
Χωρίς ΦΠΑ 32.18
+

ΠΕΡΙΓΡΑΦΗ

We all know how do earthquakes occur and what destruction they cause. But as for now, we cannot predict exactly when an earthquake will happen. So the earthquake-resistant design is becoming the new form in most earthquake-prone cities.

This earthquake working model, made of BOSON Smart Science Pack-Earthquake Challenge, is well applicable to study how to improve the buildings earthquake-proof level.

This earthquake working mode combines a shake table and earth-proof structures from simple materials and BOSON modules.


The model simulates seismic ground motion during an earthquake. With a rotation sensor, you can change the speed of the motor to generate movement at different frequencies. It will be inspiring to test the effect of short and high-frequency earthquakes on buildings.

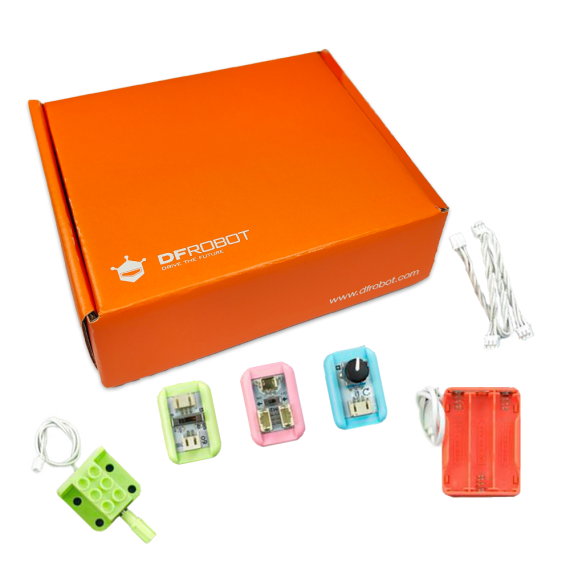

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  • 1x Mainboard-1 IO
  • 1x Motor Controller Module
  • 1x Boson: Rotation Sensor
  • 1x 3xAAA Battery Holder

  • 1x Boson: Micro Metal Gear Motor
  • 2x Cable 10cm
  • 1x Package Box



ΣΗΜΕΙΩΣΕΙΣ

  • Not include materials like micro:bit, Box & Cardboard, Straws, Pipe cleaners, Bottle caps, Bubber bans, Thumbtack, etc.

A nature earthquake creates motions on 3 axes, but since our shake table is moving along the same direction, it will be easy to measure the acceleration on the X-axis with a micro:bit, to give you an accurate result of how strong the earthquake is. Fix the micro:bit at the top of the building, plug it with your computer, open Mind+, and let the data fly.





Then, we can try different shapes/heights/weights to figure out the best solution to earthquake-proof structures.


ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Ηλικία:
8+
Θέμα:
  • Boson
Κατασκευαστής
:
DFROBOT
Part Number:
TOY0084-lite-EC
Μικτό Βάρος:
0.1kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating Voltage: 4.5V-5.5V
  • Dimension: 60x220x300mm
  • Weight: 300g

ΔΥΝΑΤΟΤΗΤΕΣ

  • Plug-and-play
  • Reusable

Applications

  • STEM Education
  • Earthquake working model
  • Ground motion simulation
  • Study on Earthquake-resistant structures
