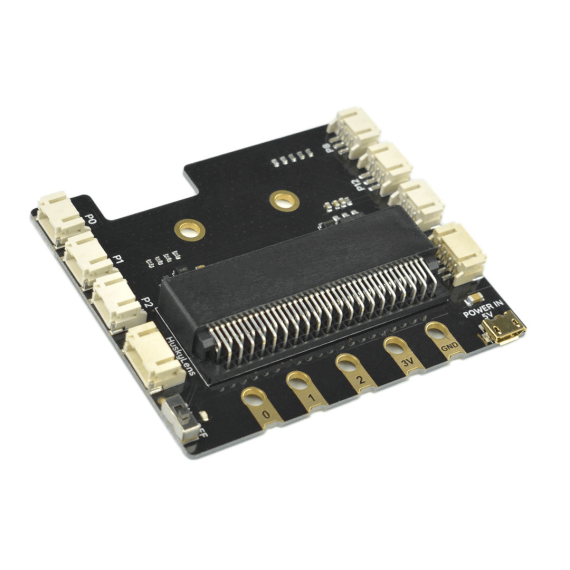

micro:bit Expansion Board for BOSON (Gravity Compatible)

από DFROBOT
micro:bit is a pocket-sized microcontroller designed for kids and beginners to learn coding and electronics, letting them easily bring ideas into DIY...
25-00016400
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR0521
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
9.90
Χωρίς ΦΠΑ 7.98
+

ΣΥΝΔΥΑΣΕ ΤΟ ΜΕ

ΠΕΡΙΓΡΑΦΗ

micro:bit is a pocket-sized microcontroller designed for kids and beginners to learn coding and electronics, letting them easily bring ideas into DIY digital games, interactive projects, and robotics.

However, on-board I/O rings and crocodile clips sometimes are not handy and safe enough to connect peripherals. To explore more possibilities with micro:bit, we have designed the micro:bit Expansion Board for Boson, a carry-on board that connects to micro:bit via the edge connector.

The expansion board comes with 6 fool-proof 3-Pin sockets, compatible with hundreds of DFRobot’s Boson and Gravity modularized electronic blocks, covering most popular digital and analog sensors and actuators, supporting sound, light, and motion interaction.

Moreover, the expansion board adds a Gravity: HuskyLens interface and an IIC interface. To ensure a steady current supply for these peripherals, the expansion board can be powered externally through the Micro-USB power port.

micro:bit Boson game pad

micro:bit RGB LED heart rate monitor

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Ηλικία:
8+
Κατασκευαστής
:
DFROBOT
Part Number:
DFR0521
Μικτό Βάρος:
0.013kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • MicroUSB Power Port Voltage:5V
  • PH2.0 Input/output Voltage: 3.3V
  • Input/output ring Voltage: 3.3V
  • HuskyLens input Voltage:5V
  • Maximum Current: 500mA
  • Working temperature: 0-85 ℃
  • Dimension 80x70mm
  • Weight: 48g

ΔΥΝΑΤΟΤΗΤΕΣ

  • 3-Pin fool-proof connector x 6
  • IIC connector x1
  • Gravity: HuskyLens connector x1
  • External power port and ON/OFF switch
  • DFRobot Gravity and Boson electronic module compatible
