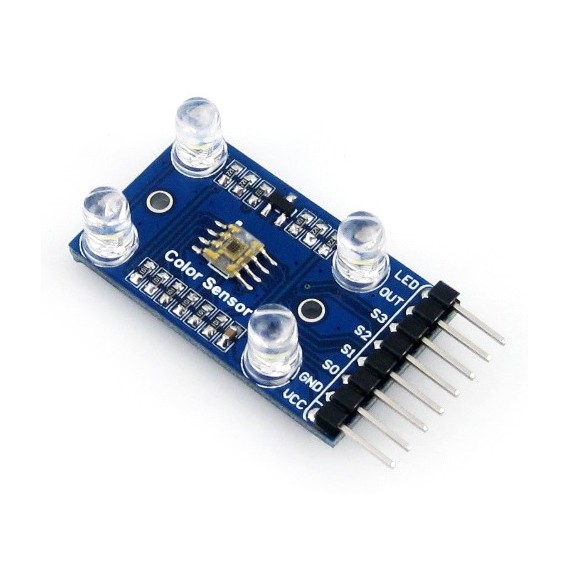

Color Sensor - TCS3200

31-00009520
Company: Waveshare
Made in: China
In Stock
Ships in 24 Hours
Low stock in store
6.90
Without VAT 5.56
+
WISHLIST COMPARE

SPECIFICATIONS

Sensor Type:
  • Color
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Oparating Current:
2mA
Interface:
  • Digital
Communication Protocol:
  • Without

Notes

  • Avoids environment light noise
  • White balance is required when the first time using the module, reseting the module, or changing the light source

EXTRA SPECIFICATIONS

  • Sensor Chip: TCS3200 (RGB color detector)
  • Detects static color, the output is a square wave with frequency directly proportional to incident light intensity
  • Supports fill-light by onboard LEDs
  • Power: 2.7V ~ 5.5V
  • Ideal detection distance: 10mm

FEATURES

  • Sorting by color
  • Ambient light sensing and calibration
  • Test strip reading
  • Color matching

Dimensions

  • Dimension: 36 x 20.6mm
  • Mounting holes size: 2.0mm

Connection

In the case of working with a MCU:

  • VCC ↔ 2.7V ~ 5.5V
  • GND ↔ power supply ground
  • LED ↔ MCU.IO (controlling the 4 white LEDs)
  • OUT ↔ MCU.IO (RGB color output frequency)
  • S0/S1 ↔ MCU.IO (Output frequency scaling selection inputs)
  • S2/S3 ↔ MCU.IO (Photodiode type selection inputs)

S0/S1 selects the output frequency scaling factor, S2/S3 selects the color filter of red, green, blue, then OUT outputs a square wave with frequency proportional to the selected color intensity. The detected color can be determined by the ratio of the intensity of red, green and blue.
