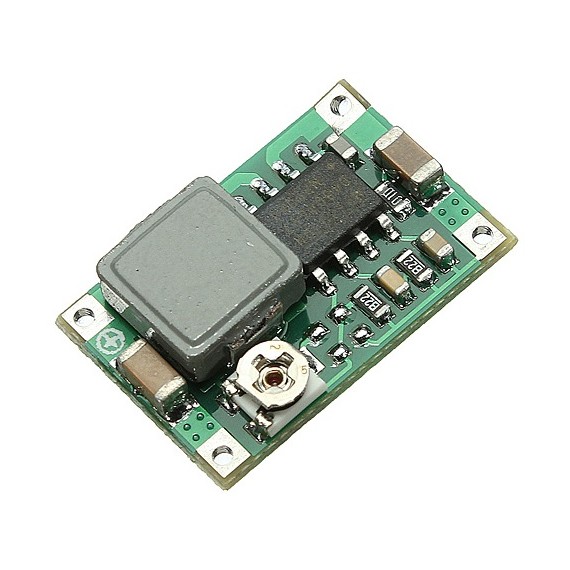

Μετατροπέας DC-DC Step-Down 1-17V 1.8A

από OEM
This is a super mini DC-DC module, on board with adjustable resistance, automatic power failure protection when temperature up to 85 ℃.
19-00010987
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
1.90
Χωρίς ΦΠΑ 1.53
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+
Τιμή 1.52 1.33

ΠΕΡΙΓΡΑΦΗ

This is a super mini DC-DC module, on board with adjustable resistance, automatic power failure protection when temperature up to 85 ℃.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Είδος Περιφερειακού:
  • Step-Down
Κατασκευαστής
:
OEM
Τάση Εισόδου:
4.75-23Volt
Τάση Εξόδου:
1-17Volt
Ένταση Εξόδου:
1.8Amp
Μικτό Βάρος:
0.002kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Module Properties: Non-isolated buck
  • Rectification: Synchronous rectification
  • Input voltage: 4.75V-23V
  • Output voltage: 1.0V-17V
  • Output Current: Lowering the value of 3A, long 1.8A
  • Conversion efficiency: 96% (maximum)
  • Switching Frequency: 340KHz
  • Output ripple: 30mV (no-load)
  • Load regulation: 0.5%
  • Voltage regulation: 2.5%
  • Working temperature: -40 ℃ to +85 ℃

ΔΥΝΑΤΟΤΗΤΕΣ

  • Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.
  • Applications:
    • HM dedicated DC-DC step-down module (supports 2S ~ 5S lithium polymer)
    • DIY mobile power
    • Car power
    • Communications equipment supply
    • There are a variety of size and weight for demanding applications
