DC-DC Converter Step-Up 2-24V 2A - SX1308

19-00010993
In Stock
Ships in 24 Hours
250
Our quantity discounts:
Quantity
10+
100+
Price
2.00
1.75
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

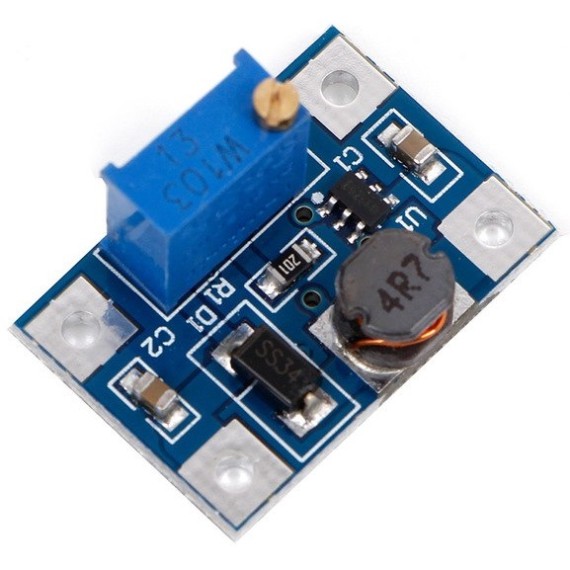

LC SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency. The output power can be adjust, maximum can arrive 28V and its interior integrate the lowest RDS internal resistance 100mΩ metal oxide semiconductor field effect transistor (mosfet), which can realize large current output of up to 2A. It widely used in 3G network products, digital products, mobile power supply,battery power supply, equipment, etc.
  • Maximum input voltage: DC 2-24V
  • Maximum output voltage: DC 2-28V
  • Switching frequency: 1.2MHz
  • Maximum current output: 2A

Notes

  • Turn the potentiometer in one direction more than 10 rotations for try.
  • To increase output voltage, turn the potentiometer counterclockwise
  • Oscillation frequency 1.2MHz
  • Efficiency is as high as 95%
  • Circuit has short circuit protection, overheating protection function
  • 10k to adjust potentiometer, adjust the output voltage
Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Oem
Input Voltage
2-24 Volt
Output Voltage
5-28 Volt
Output Current
2 Amp
G. Weight
0.008kg
