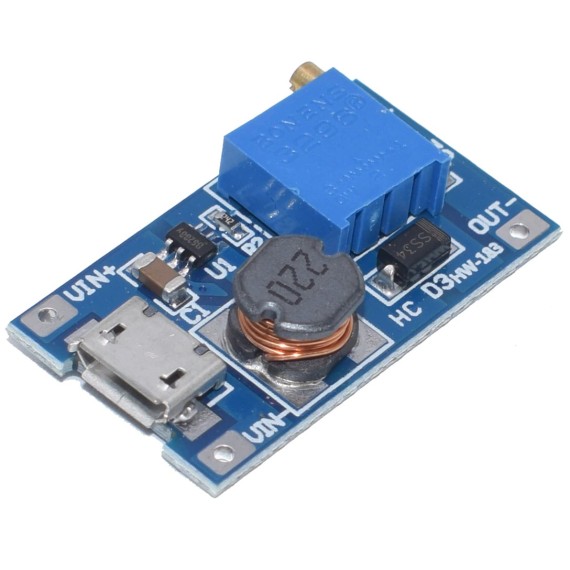

DC-DC Converter Step-Up 5-28V 2A with Micro USB - MT3608

by OEM
The MT3608 DC-DC Boost module is based upon MT3608 high efficient 1.2Mhz 2 Ampere step up convertor. The MT3608 features automatic shifting to pulse...
19-00015786
Gross Weight: 0kg
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
1.90
Without VAT 1.53
+
WISHLIST COMPARE

DESCRIPTION

The MT3608 DC-DC Boost module is based upon MT3608 high efficient 1.2Mhz 2 Ampere step up convertor. The MT3608 features automatic shifting to pulse frequency modulation mode at light loads. The MT3608 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload.



NOTES

  • The module of the IN + and - after 2~24V, Adjusting the potentiometer adjusts output voltage, output voltage is greater than the input voltage.
  • The input voltage should not exceed the maximum input voltage.

SPECIFICATIONS

Input Voltage:
2-24Volt
Output Voltage:
5-28Volt
Output Current:
2Amp

SPECIFICATIONS

  • Dimensions: 31.5x17.5x7mm

FEATURES

  • Integrated 80mΩ Power MOSFET
  • 2V to 24V Input Voltage
  • 1.2MHz Fixed Switching Frequency
  • Internal 4A Switch Current Limit
  • Adjustable Output Voltage
  • Internal Compensation
  • Up to 28V Output Voltage
  • Automatic Pulse Frequency Modulation Mode at Light Loads
  • Up to 97% Efficiency
  • Available in a 6-Pin SOT23-6 Package
