Μετατροπέας DC-DC Step-Up 5V 1.2A - USB

Κωδικός:

19-00090175

ΚατασκευαστήςOem

Διαθέσιμο

Αποστολή σε 24 ώρες

€2⁶⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

100+

Τιμή

€2.08

€1.82

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

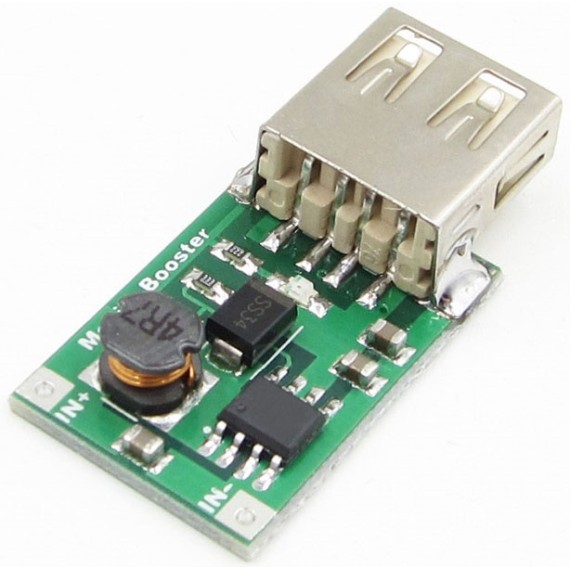

If you have a power source such as a two AA battery that is running around 2V this module will boost that voltage to 5v stable with 1–1.2A current output. This is a very good product that allows you to boost any voltage from 5-2VDC source to 5VDC stable output while saving on multiple batteries. If you double the battery the double the current will be outputted by this device.

Voltage in: 2V ~ 5V
Voltage Out: 5V Stable
Current output max: 1.2A
Operating Temperature: -40 to 85 Celsius
Efficiency: 96%
Output: Female USB Port

Input 2V ~ 5V any DC voltage, can be stable output 5V DC voltage, with two AA batteries can output 1000ma input current, a single lithium battery-powered output of 1200ma current, for mobile phones, cameras, microcontrollers, digital Product power supply.
With USB female, versatile
The conversion efficiency, the highest 90%, an average of 85%, 3.7V rise 5V / 1A typical application efficiency of 87%, the following diagram for reference
Ultra-small size, with the installation in a variety of small equipment
With work indicator, and identify the installation location of the resistance
