Desktop 5-DOF Robotic Arm Kit - High-torque Serial Bus Servo

από WAVESHARE
Το RoArm-M1 είναι ένας μηχανικός βραχίονας που βασίζεται στο ESP32. Αυτό το προϊόν έχει συνολικά 5 degrees of freedom, όλοι εκ των οποίων οδηγούνται από έναν σερβομετρικό διαύλου ST3215 υψηλής ροπής 30kg.cm. Κάθε σερβομηχανισμός μπορεί να ανατροφοδοτήσει την τρέχουσα τάση, τη θέση, το ρεύμα, τη θερμοκρασία, το φορτίο και άλλες πληροφορίες.
31-00023937
Ογκομετρικό βάρος: 4kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: RoArm-M1 (EU)
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
379.90
Χωρίς ΦΠΑ 306.37
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 360.91

ΣΥΝΔΥΑΣΕ ΤΟ ΜΕ

ΠΕΡΙΓΡΑΦΗ

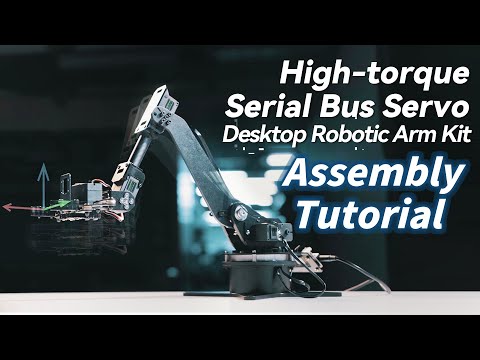

High-Torque Serial Bus Servo, Desktop Robotic Arm Kit, Based On ESP32, 5-DOF, Supports Wireless Control

  • RoArm-M1 is a serial robotic arm with 5-DOF in total, including the clamping freedom of the gripper
  • Two control methods in demo: Angle control and Coordinate control
  • Supports Leading-following mode based on ESP-NOW
  • Supports motion recording and replaying control mode
  • Based on ESP32, supports WIFI and UART communication, provides multiple motion model demos and cross-platform Web application
  • Supports multiple host computers, provides ROS 2 demo and other rich learning resources

Onboard Resources

  1. ESP32-WROOM-32 main controller
  2. Servo control header
  3. OLED screen
  4. Download button
  5. Reset button
  6. Type-C port
    Download/UART communication
  1. USB to UART circuit
  2. RGB LED
  3. 12V DC power jack
  4. RGB LED extension port
  5. Serial bus servo control circuit

ESP32-WROOM-32 Main Control Module

Support Multiple Wireless Communication Methods: 2.4G WiFi, Bluetooth 4.2, ESP-NOW

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. RoArm-M1 and package box x1
  2. 12V 5A power supply x1
12
High Strength X Light Weight

Stainless Steel Gripper - Carbon Fiber Arm - Aluminum Body



Flexible Control Methods

Servo torque lock can be turned on/off, and the servo can be rotated by external force after the torque lock is turned off

Leading-following control mode, more flexible motion control

The robot arm can record the current position and cycle by steps

Support Multiple Host Computers

The Robotic Arm Can Be Connected To Raspberry Pi, Jetson Nano, PC And Other Host Computers Via USB cable



ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
WAVESHARE
Part Number:
RoArm-M1 (EU)
Μικτό Βάρος:
4kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

ΑΡΧΕΙΑ
