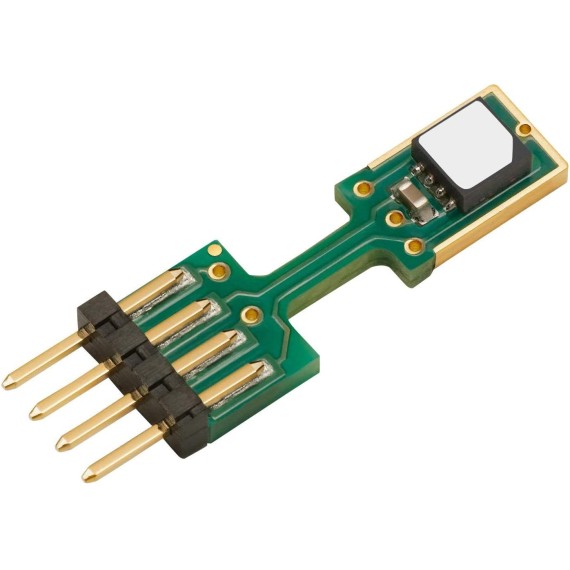

Digital Humidity Sensor SHT85 (RH/T)

Pin-type Humidity Sensor Enabling Easy Replaceability A highly accurate, digital pin-type relative humidity sensor for easy replaceability in a wide...
05-00010652
Company: Sensirion
Part Number: 3.000.074
Made in: China
Out of Stock
Product out of stock
No stock in retail store
27.90
Without VAT 22.50

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

Pin-type Humidity Sensor Enabling Easy Replaceability

A highly accurate, digital pin-type relative humidity sensor for easy replaceability in a wide range of applications.

The digital humidity sensor SHT85 is Sensirion’s best-in-class humidity sensor with a pin-type connector for easy integration and replacement. It builds on a highly accurate SHT3x sensor with long-term stability that is at the heart of Sensirion’s new humidity and temperature platform. The unique package design allows for the best possible thermal coupling to the environment and decoupling from potential heat sources on the main board. The SHT85 features a PTFE membrane dedicated to protecting the sensor opening from liquids and dust according to IP67 without affecting the response time of the RH signal.

It thus allows for sensor use under harsh environmental conditions such as high exposure to dust. Final accuracy testing on the product level ensures best performance, making the SHT85 the ultimate choice for even the most demanding applications.

SPECIFICATIONS

Sensor Type:
  • Humidity
  • Temperature
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Interface:
  • Digital
Communication Protocol:
  • I2C

SPECIFICATIONS

  • Output: I2C
  • Supply voltage range: 2.15 to 5.5 V
  • Energy consumption: 4.8µW (at 2.4 V, low repeatability, 1 measurement / s)
  • RH operating range: 0 - 100% relative humidity
  • T operating range: -40 to +105°C
  • RH response time: 8 sec (tau63%)
  • Dimensions: 17.8x4.9x2.1mm

FEATURES

Accuracy Limits for Relative Humidity and Temperature
