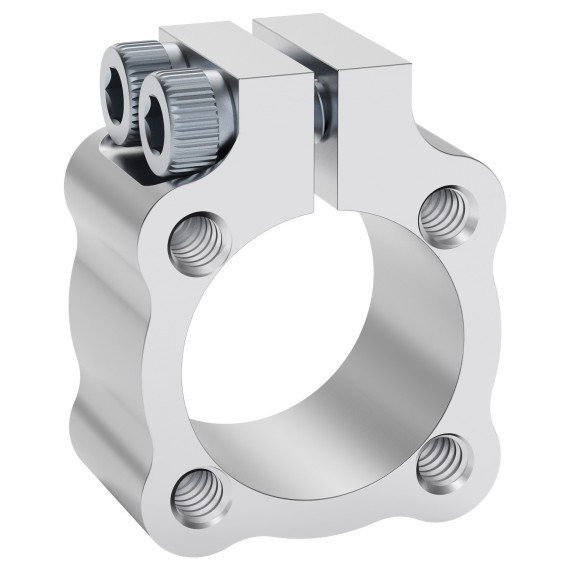

Dual Pinch Bolt Clamping Hub 5/8'' Bore

από SERVOCITY
Our dual bolt clamping hubs work great to attach gears, sprockets, wheels or other items to hollow  1/2”   or 5/8” aluminum tubes. The tube clamp has...
17-00545344
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: SERVOCITY
Part Number: 545344
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
7.40
Χωρίς ΦΠΑ 5.97
+

ΠΕΡΙΓΡΑΦΗ

Our dual bolt clamping hubs work great to attach gears, sprockets, wheels or other items to hollow 1/2” or 5/8” aluminum tubes. The tube clamp has four (4) equally spaced 6-32 tapped holes. Precision machined from aluminum. These clamping hubs offer several advantages over set screw hubs. First, they do not damage the shaft which they are attached. Second, they offer more holding power in high torque applications. The side clamping machine screw is 6-32 and accepts a 7/64” hex key.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
SERVOCITY
Part Number:
545344
Μικτό Βάρος:
0.00907kg
Τύπος :
Clamping Hub
Εσωτερική Διάμετρος:
15.87mm

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Material: Aluminum
  • Coupling Style: Clamping
  • Hole Pattern: 0.770"
