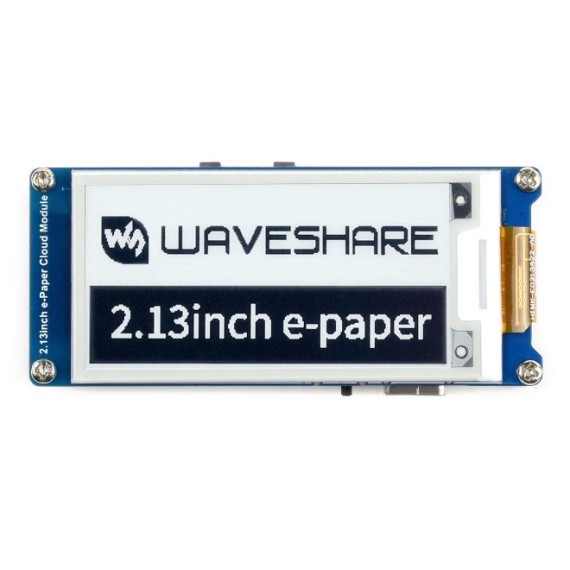

e-Paper Display Module 2.13" 250x122 (Black-White) - WiFi

από Waveshare
Οθόνη e-Paper 2.13" με Cloud Module. Συνδεσιμότητα με WiFi, έχει χαμηλή κατανάλωση ενέργειας, ευρεία γωνία θέασης, εφέ τύπου χαρτιού!
31-00019399
Ογκομετρικό βάρος: 0.05kg
Κατασκευαστής: Waveshare
Part Number: 19399
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
32.80
Χωρίς ΦΠΑ 26.45
+

ΠΕΡΙΓΡΑΦΗ

2.13" e-Paper Cloud Module
WiFi Connectivity, Low Power Consumption, Wide Viewing Angle, Paper-Like Effect

Ideal for price tags, shelf labels, industrial instruments...

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.

E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Resources Introduction

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. 2.13inch e-Paper Cloud Module x1
  2. Li-po battery 3.7V 2000mAh x1
  3. Screws pack x1
123


Refreshed Via WiFi

Android APP Is Also Provided

Refreshed Via Remote Webpage

Comes With HTML Host Computer Code, Suitable For Sorts Of Internet Applications

Constant Current Control, Better Efficiency

The Recharging Efficiency Of ETA6096 Can Be Up To 94%

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...



ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
Waveshare
Part Number:
19399
Καθαρό Βάρος:
0.049kg
Χώρα Προέλευσης:
Κίνα
Breadboard Friendly:
Τύπος:
e-Paper
Μέγεθος Οθόνης:
2.13"
Ανάλυση:
250x122
Χρώματα Οθόνης:
Μαύρο & Λευκό
Οθόνη Aφής:
Όχι

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Communication:
    • WiFi 2.4GHz
    • Bluetooth 4.2
  • Outline Dimensions: 71x30.2mm
  • Display Size: 48.55x23.70mm
  • DOT Pitch: 0.194x0.194mm
  • Resolution: 250x122 pixels
  • Battery: 2000mAh
  • Display Color: Black, White
  • Power Supply: Battery
  • Full Refresh Time: 2s
  • Viewing Angle: >170°

ΔΥΝΑΤΟΤΗΤΕΣ

  • Incorporates ESP32, supports Arduino developing
  • No backlight, keeps displaying last content for a long time even when power down
  • Voltage detection circuit for preventing the battery from over-discharging
  • Features battery connector and recharge circuit, allows off-line running
  • Provides Android APP for refreshing the module via Bluetooth EDR, easy to use
  • Provides HTML host computer code for refreshing the module via remote webpage, easy to be integrated into sorts of Internet applications
  • Supports Floyd-Steinberg dithering algorithm, more color combinations, better shadow rendering for the original image
  • Supports popular image formats: BMP, JPEG, GIF, PNG, etc.
  • Delivered with embedded e-Paper driver (open source)
