EcoDuino - An Auto Planting Kit

Κωδικός:

25-00016148

Part Number: KIT0003

ΚατασκευαστήςDFROBOT Part NumberKIT0003

Διαθέσιμο

Αποστολή σε 24 ώρες

€69⁹⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

EcoDuino is evolving. Now the EcoDuino has a new enclosure. It is protected from water splashes, so it is safe to use beside your plants. The EcoDuino now supports an Atmega32U4 which eliminates the requirement of an adapter. And sketches can simply uploaded via Micro USB just like Arduino Leonardo. Another improvement is that the DS18B20 sensor is now directly supported.

EcoDuino is designed by DFRobot to help you grow plants. By using a series of microcontrollers, sensors and actuators, the EcoDuino system can make your efforts to grow plants much easier.

In this system, sensors are used to collect data which can show you plant conditions like temperature,humidity,light intensity, etc...

If you want, EcoDuino can message you and tell you how your plants are doing through wireless communications. It will also water your plants automatically when they are thirsty, or at a pre-determined interval. The only thing you may need to do is manage your EcoDuino system through a PC with a graphic user interface.

The cool thing about the EcoDuino is that it is developed based on Arduino which means you can not only program EcoDuino in Arduino IDE environment but also use any Arduino compatible hardware in your EcoDuino system.

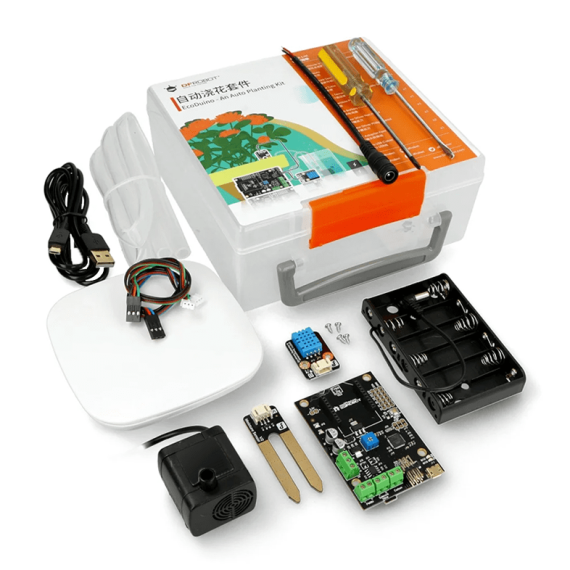

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

1x Free Life - EcoDuino Control Board
1x Enclosure
1x Moisture Sensor (SEN0114)
1x DHT11 Temperature and Humidity Sensor (DFR0067)
1x Water tube
Immersible pump
1x 6xAA Battery Holder with DC2.1 Power Jack (FIT0141)
1x Micro USB cable (FIT0265)
1x Screw driver flat head
1x Screw driver phillips head
2x DC adapter-Female
2x Cable

ΣΗΜΕΙΩΣΕΙΣ

Version Upgrade: Kit 2.0 has redesigned the PCB to fit the new enclosure. The other feature is same to the last version and the code is compatible.

Board power supply: 6~12V DC
Micro controller: Atmega32U4 (Bootloader: Leonardo)
4 Analog I/O ports, 5 Digital I/O ports
Terminal for interfacing a Carbon rod(Soil moisture sensor)
Terminal for interfacing a DS18B20 temperature sensor(Soil temperature sensor)
Terminal for interfacing a motor or a solenoid valve
Potentiometer to set the threshold soil moisture value of watering
Xbee slot
Micro USB

3.5mm screw terminal
Board dimensions: 75 x 50 mm
Diving pump power supply: 4.5~12V DC
Pumping head: 200cm
Flow capacity: 100-350L/H
Power range: 0.5W-5W
Pump dimensions: 38x38x29mm
Pump weight: 125g
