Electro-Fashion Flasher Controller LEDs & Thread

από KITRONIK
This unit provides a simple way of adding flashing white LEDs to a textiles project using conductive thread. The unit is programmed with a number of...
83-00002719
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: KITRONIK
Part Number: KITRONIK-2719
Χώρα Προέλευσης: Ηνωμένο Βασίλειο
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
8.40
Χωρίς ΦΠΑ 6.77
+

ΠΕΡΙΓΡΑΦΗ

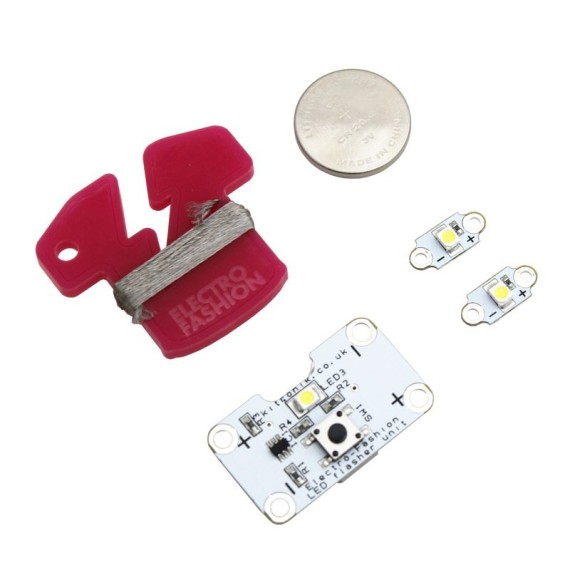

This unit provides a simple way of adding flashing white LEDs to a textiles project using conductive thread. The unit is programmed with a number of flashing patterns, which are selected by a push button on the main board. Pressing this button cycles through the following patterns: all LEDs constantly on, slow flash all on all off, fast flash each in turn and turned off. The device features auto-off, which turns the unit off after 30 minutes to preserve battery life. This kit is supplied pre-built so requires no soldering. Each kit comprises three small PCBs. The largest of the three PCBs holds an LED plus the control electronics, battery and a push button. On both of the remaining PCBs there is an LED, these are connected to the main board with conductive thread (supplied). Depending upon flash pattern the battery lasts for approximately two days of constant use.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
KITRONIK
Part Number:
KITRONIK-2719
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Ηνωμένο Βασίλειο

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Physical characteristics:

  • Length: 15mm
  • Width: 6.5mm
  • Height: 2.7mm
  • Lens Type: Water Clear
  • Viewing Angle: 120 degrees

Electrical characteristics:

  • Forward Voltage Drop: 3.1V
  • Luminous Intensity: 560 - 1000mCd (@20mA)

  • The coin cell holder in this pack contain Nickel and should not be used in designs where it will be in prolonged contact with the skin

ΔΥΝΑΤΟΤΗΤΕΣ

  • Everything you need to complete one project
  • Flasher control unit with 3 seperate modes
  • Additional LEDs
  • Full instructions for assembly
  • Auto-Off to preserve battery life

ΘΑ ΧΡΕΙΑΣΤΕΙΣ ΕΠΙΣΗΣ

  • Scissors
  • Needles
